'08-21 200 Series Toyota Land Cruiser SDHQ Built Hidden Winch Mount
'08-21 200 Series Toyota Land Cruiser SDHQ Built Hidden Winch Mount
MCQUEEN
190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States
Choose options

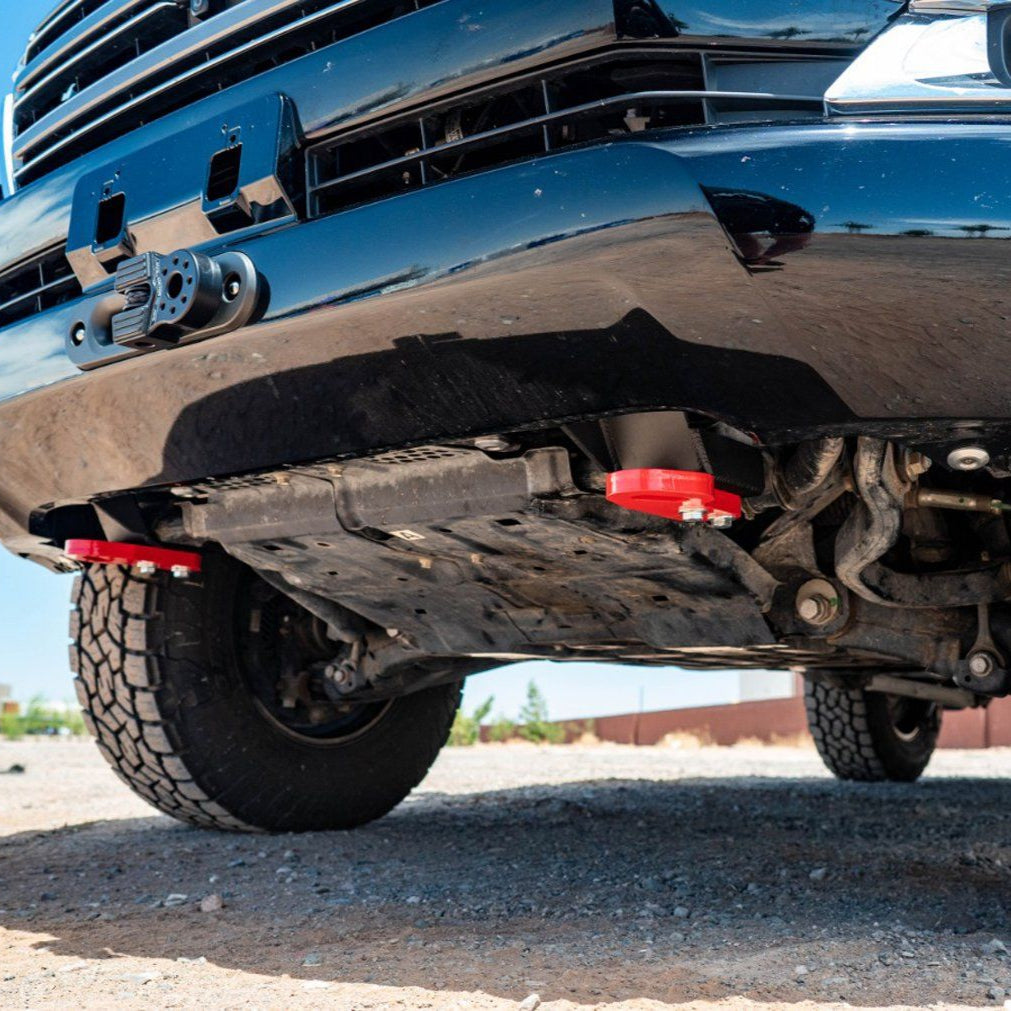

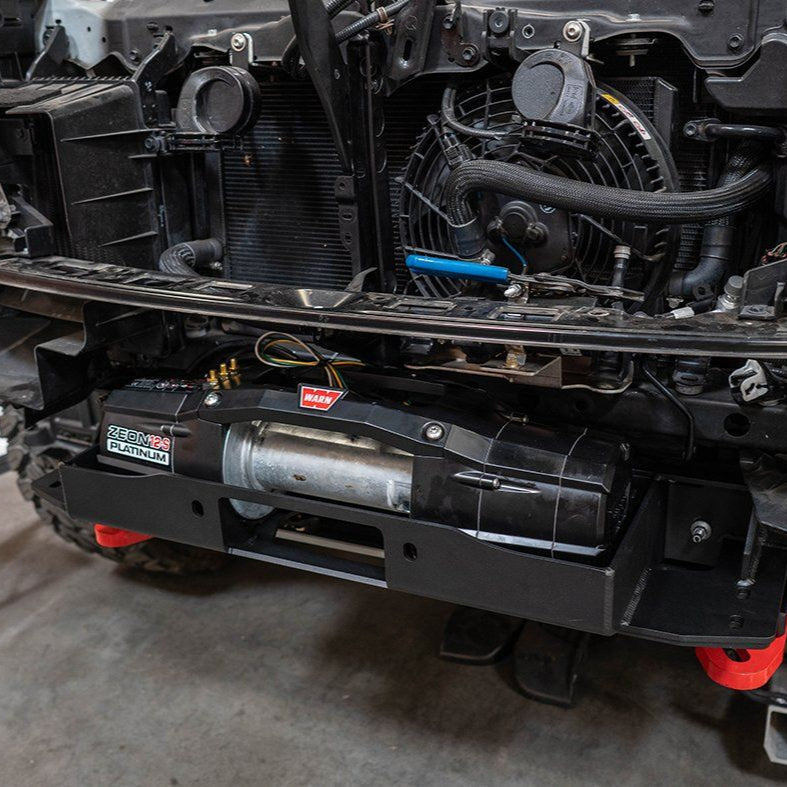

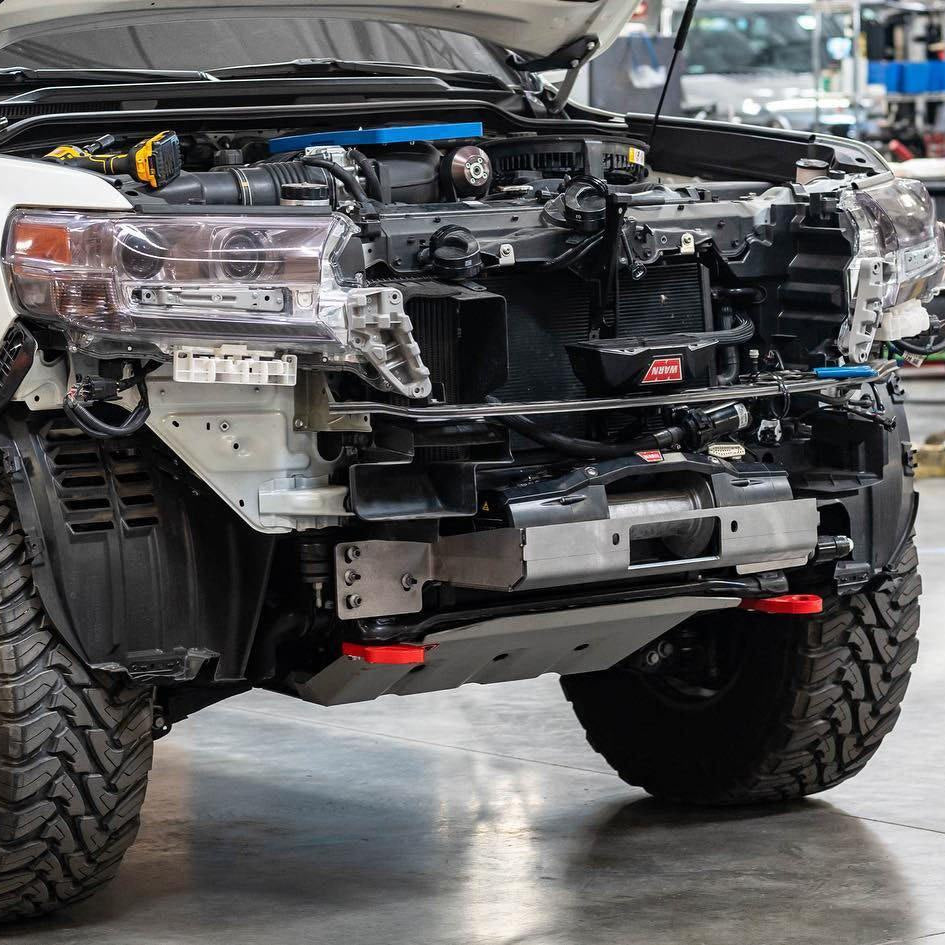

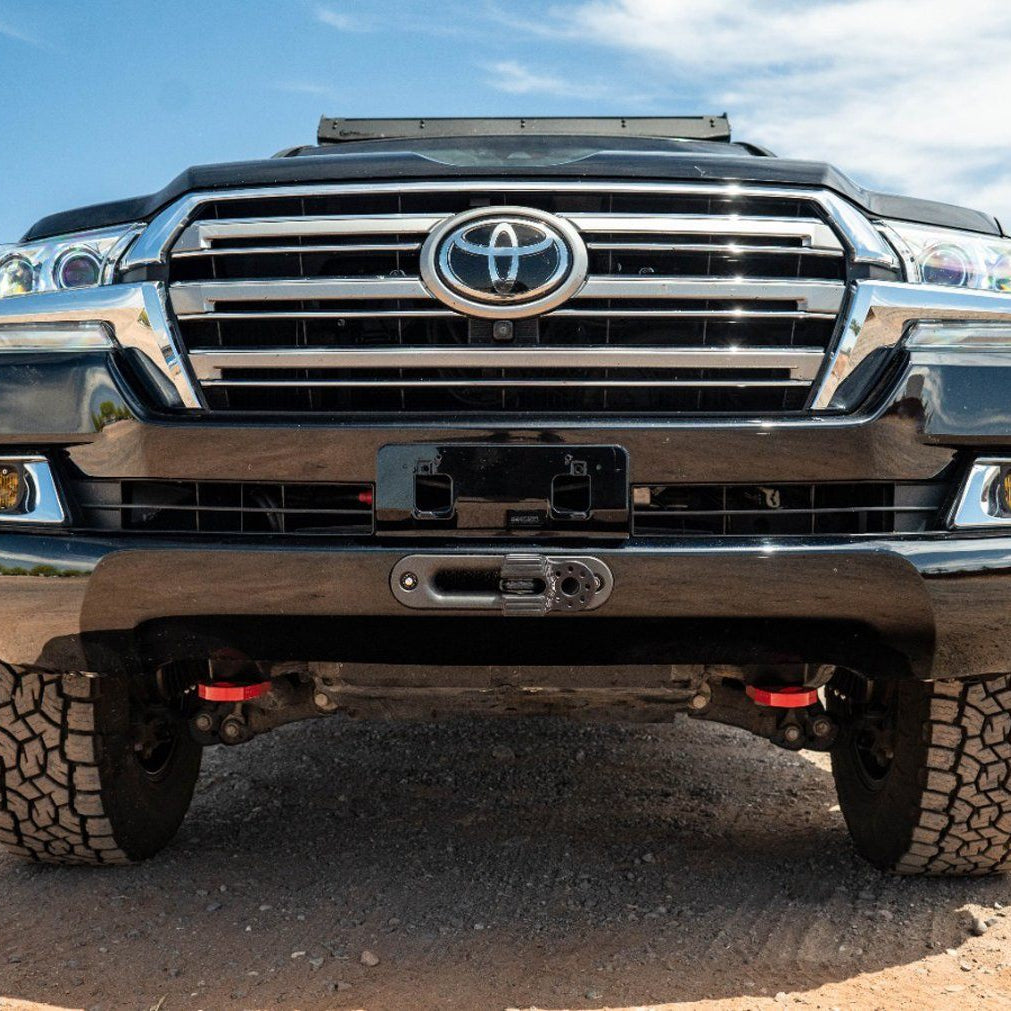

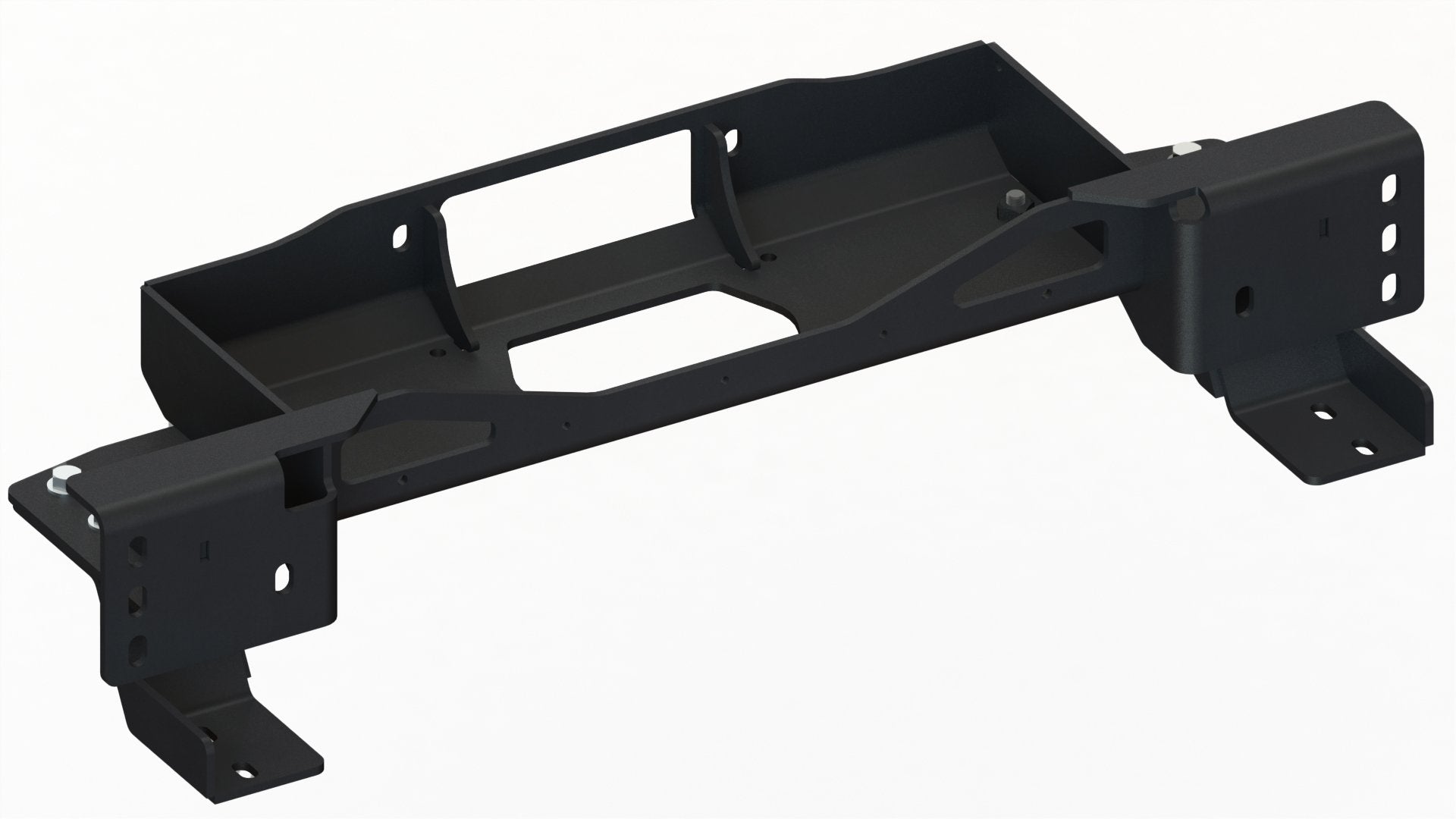

Our SDHQ Built Hidden Winch Mount for 2008-2021 200 Series Toyota Land Cruisers will elevate your Land Cruiser's off-roading capabilities. This winch mount allows Land Cruiser owners to mount a Warn Zeon series winch to the front of their Land Cruiser while providing a direct from the factory look.
Our winch mount is fabricated and gusseted from ¼” steel, bolts directly to the Land Cruiser's frame, and includes all the necessary components for a clean install.
VEHICLE FITMENT:
- 2008-2021 200 Series Toyota Land Cruiser
WINCH FITMENT:
Our #SDHQBuilt winch mount is designed to work with the following Warn Winches.
KEY FEATURES:

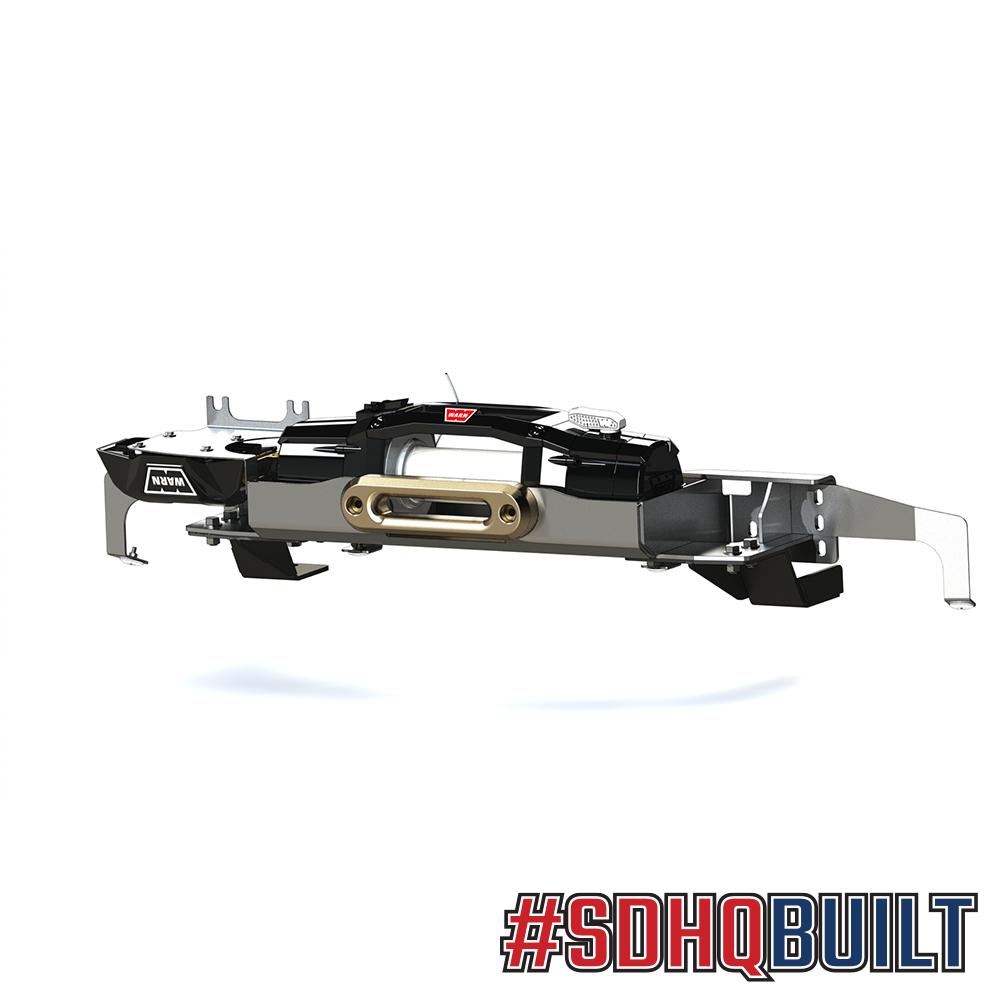

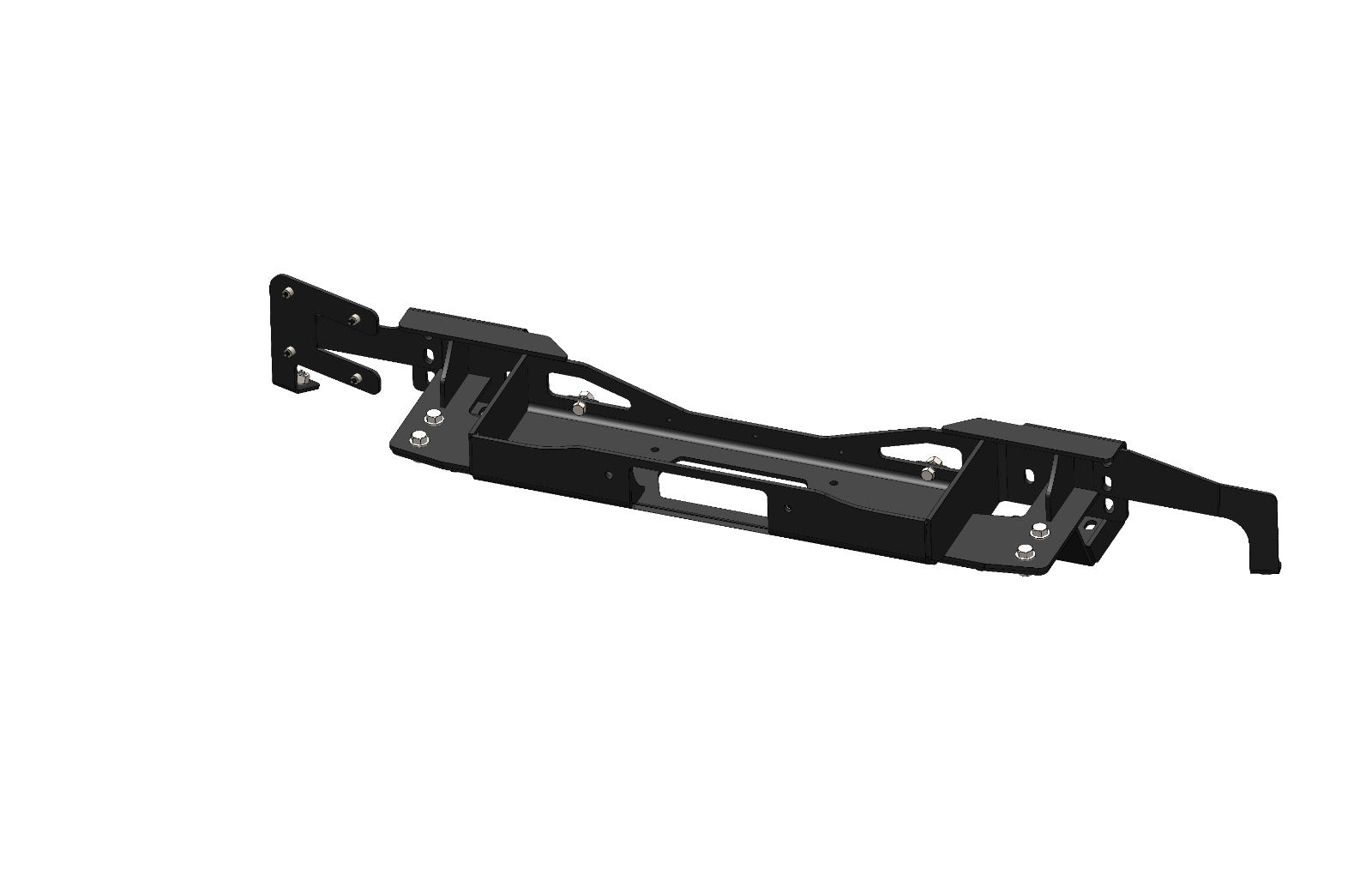

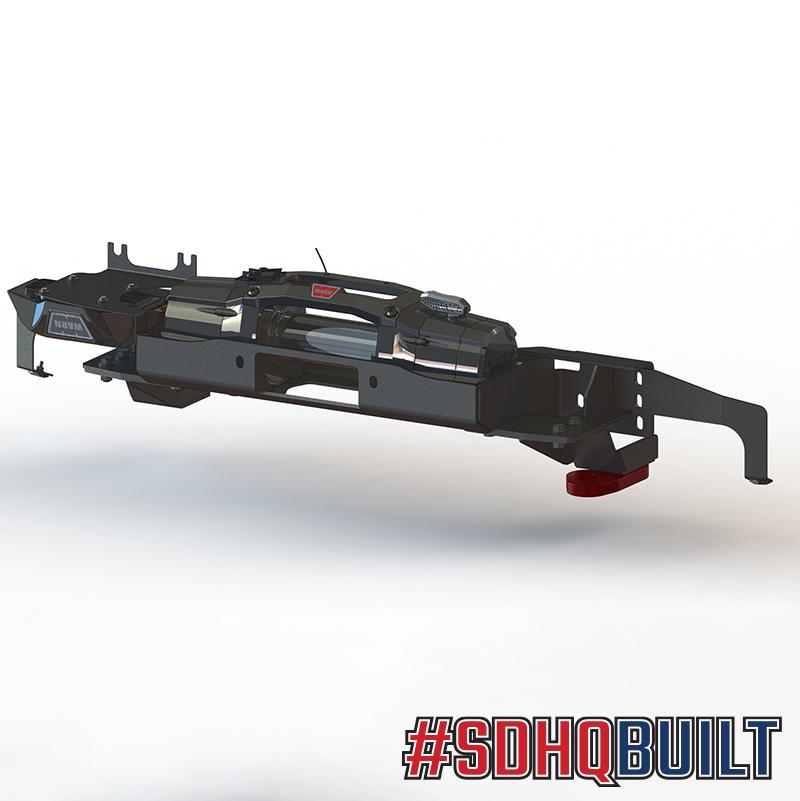

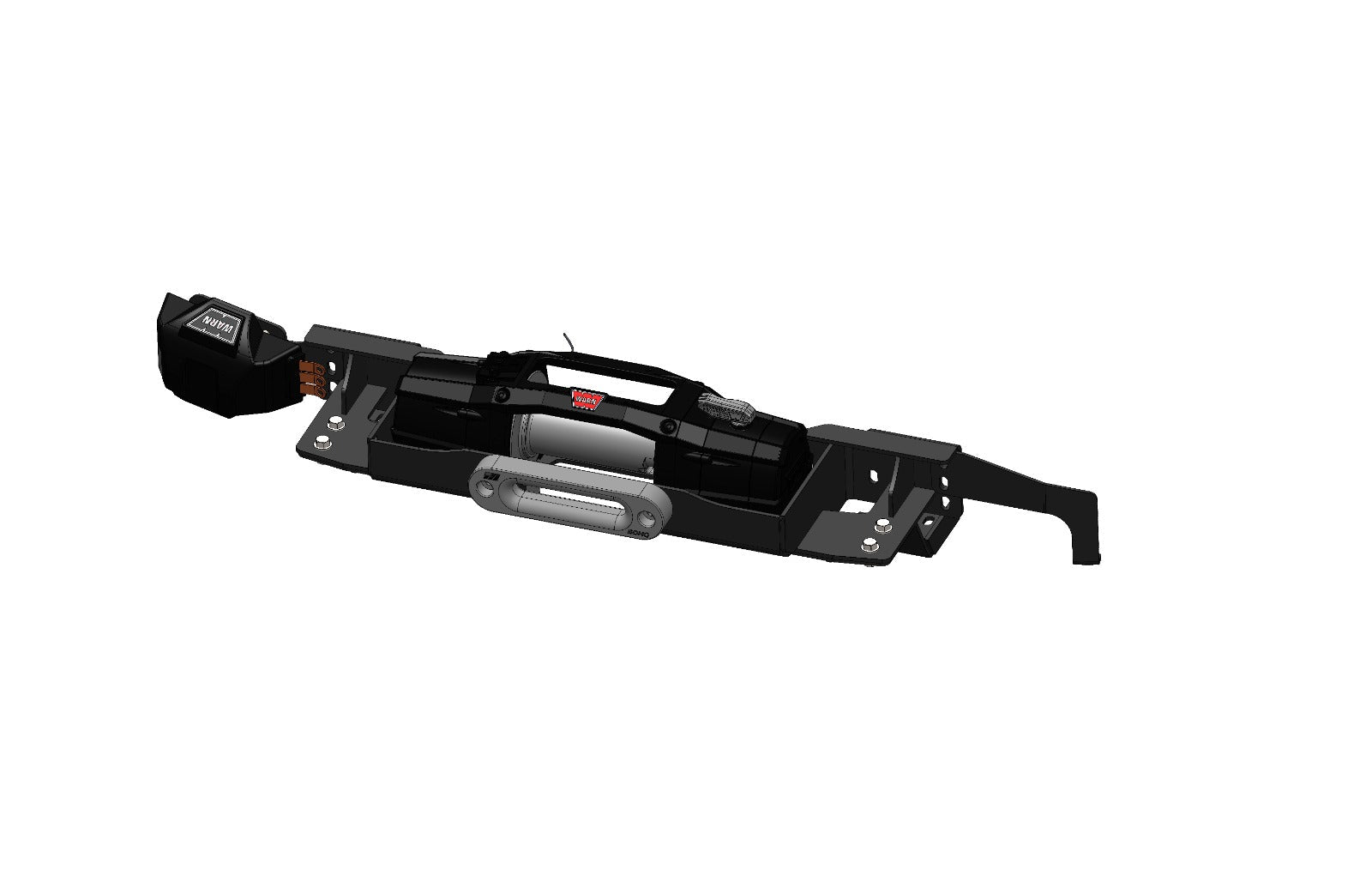

- 3D CAD designed, engineered & built in-house for our typical SDHQ Built quality, fit, and finish
- Bolts directly to frame in (12) locations using factory hardware
- Main winch mount fabricated and gusseted from ¼” steel for strength and durability.
- Bumper supports in several locations for OEM Quality bumper fitment

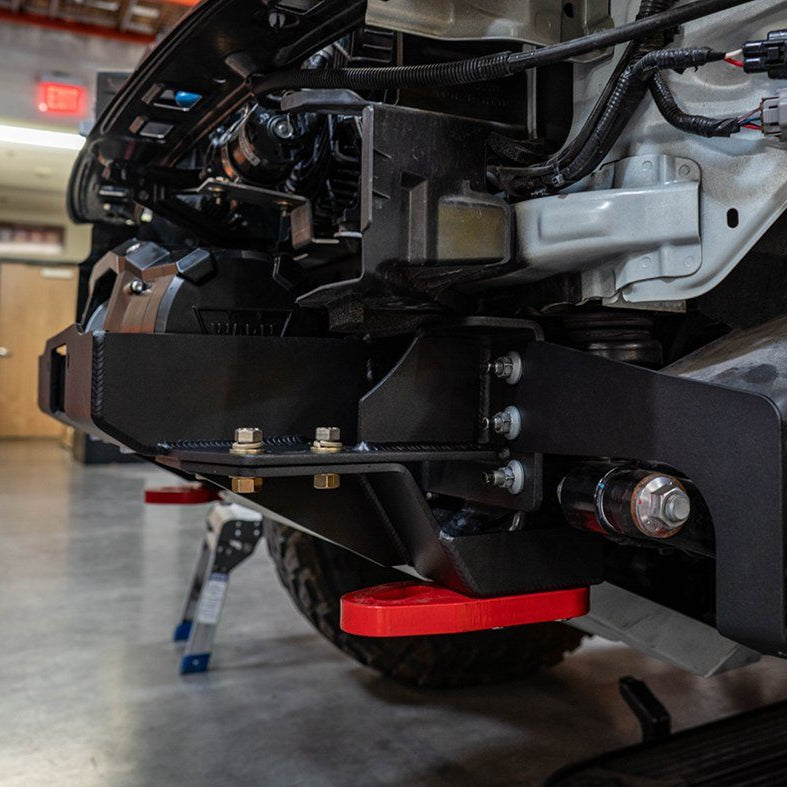

- The Lower support mounts are fabricated and gusseted from ¼” steel and bolt to the main winch mount using (6) ½” Grade 8 Bolts

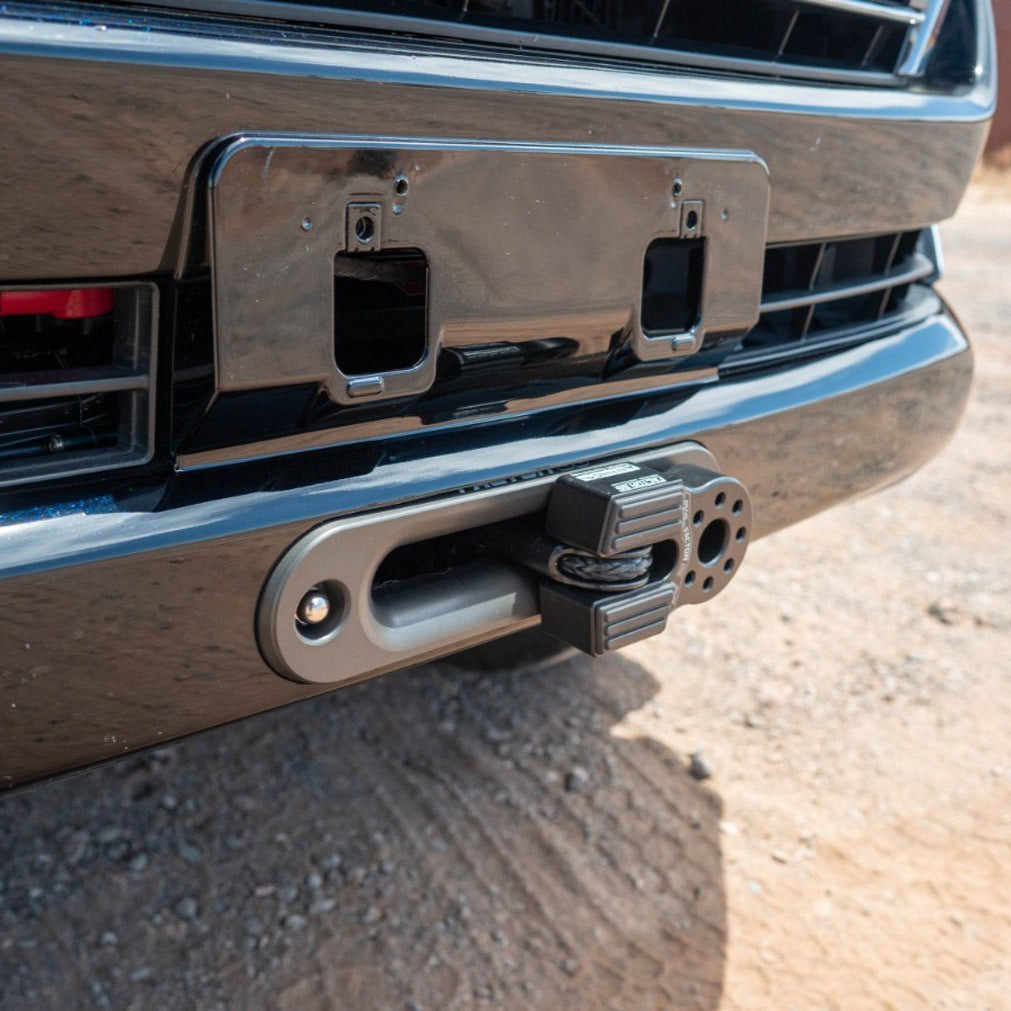

- (1) SDHQ Built 1.5" Fairlead is included with our mount. This fairlead sits flush with the OEM bumper for high angle recoveries.

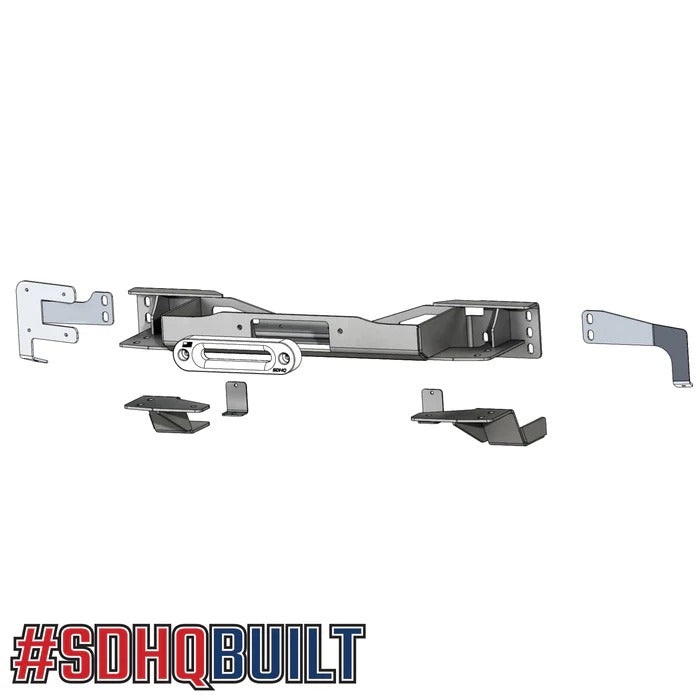

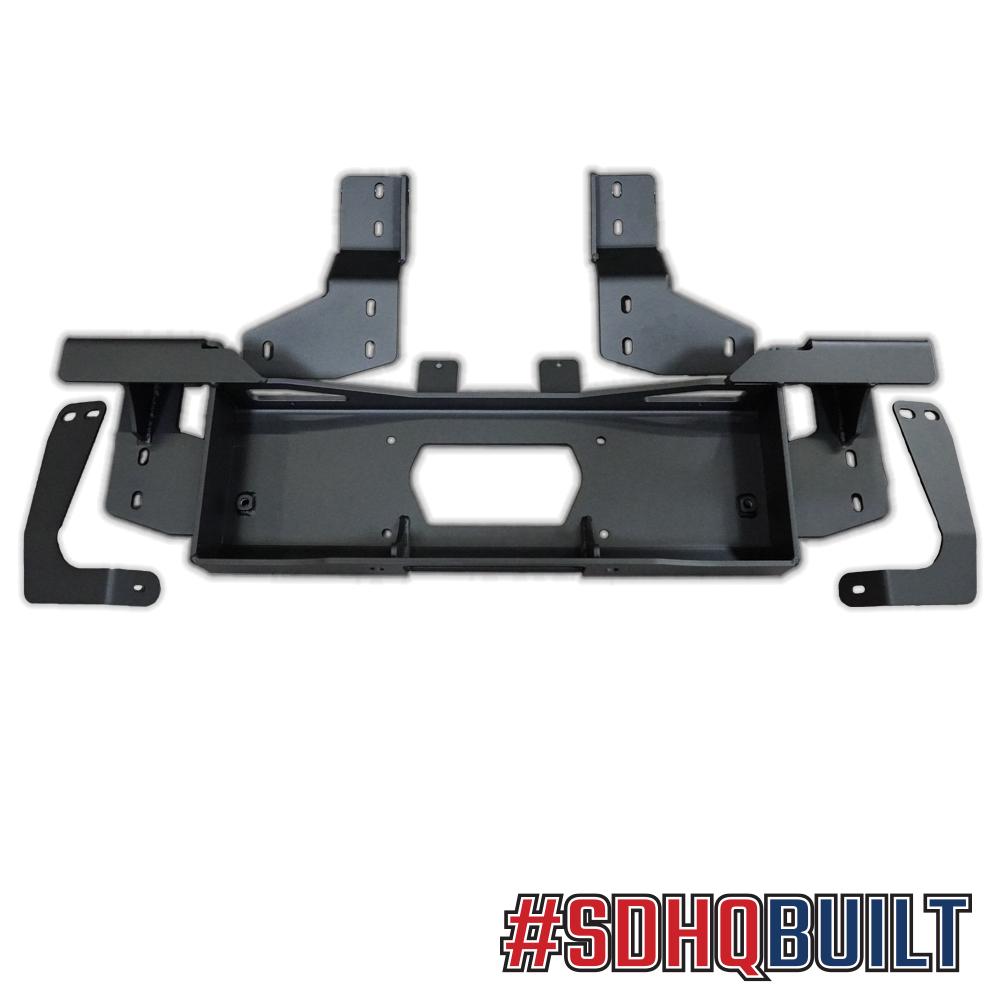

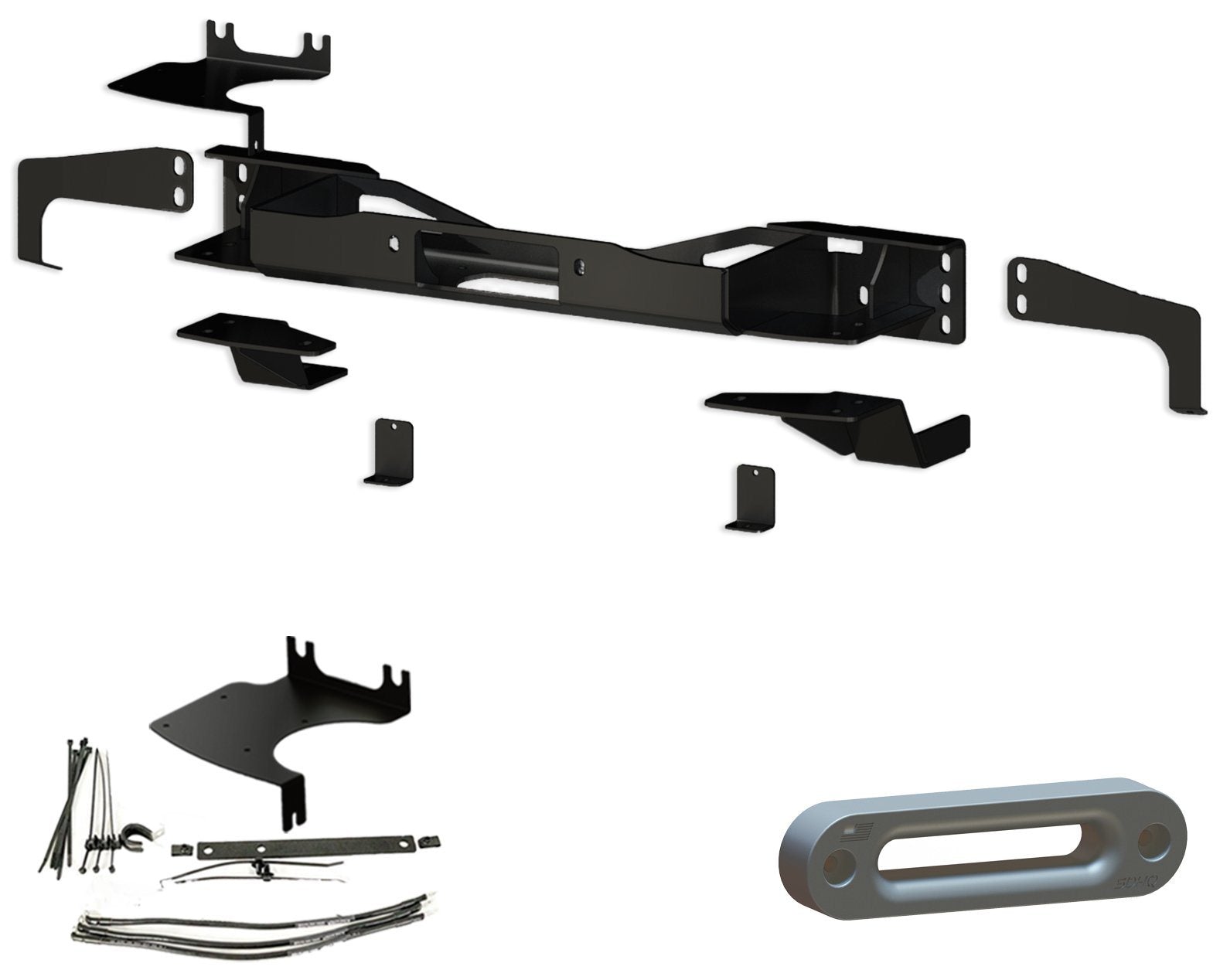

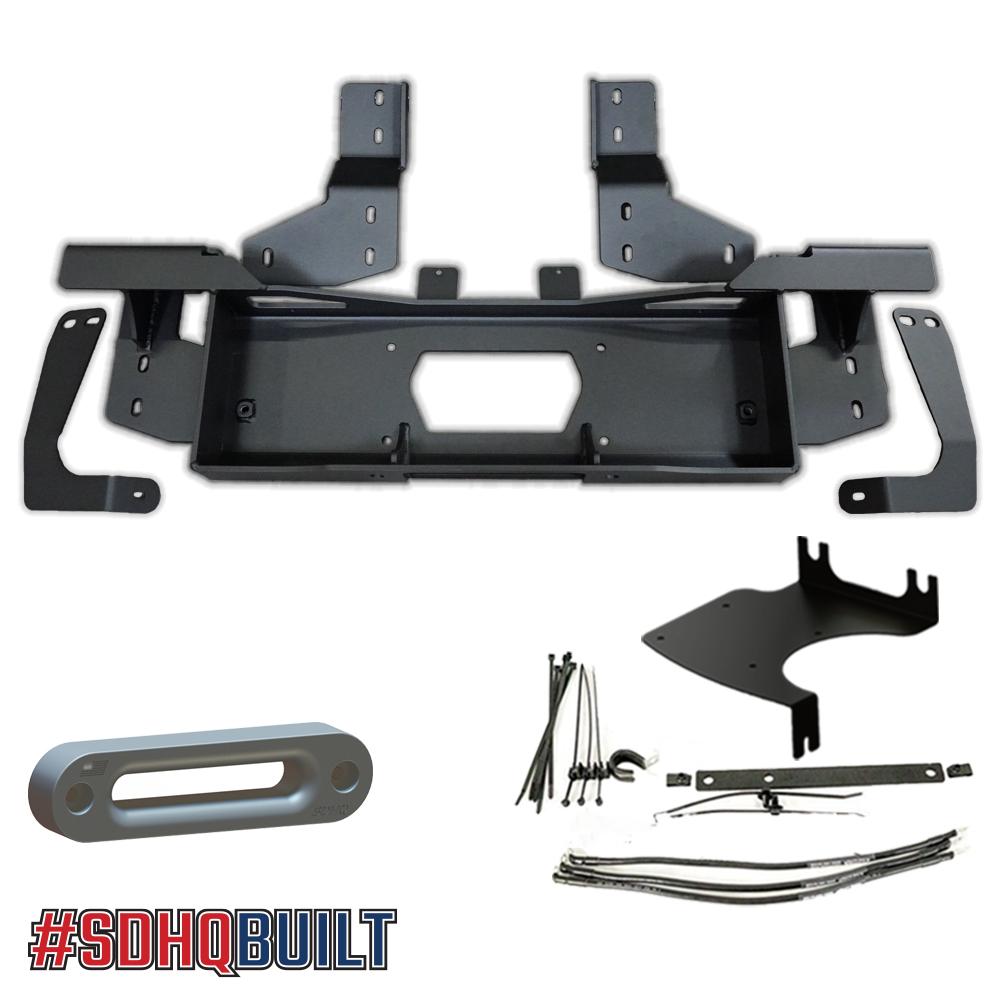

WHAT'S INCLUDED:
- Main winch mount
- Outer bumper supports with integrated Warn Zeon relocation bracket included
- (1) #SDHQBUILT 1.5" Fairlead
- Lower bumper supports
- Lower support mounts
TECH INFO:
- Trimming of stock bumper is required
- Using a winch with a synthetic rope is highly recommended
- Zeon Control Box Relocation Bracket included (SDHQ-52-1660-200)
-
SUPERCHARGER FITMENT:
- Compatible with Harrop Superchargers (purchase of relocation kit is required for installation) LEARN MORE
- Currently does not fit Magnuson Superchargers
