2024+ LC250 SDHQ Built Switch Pros SP9100 Kit

$738.95
SKU: SDHQ-52-1130-250 + SP9100
Pickup available at MCQUEEN Usually ready in 24 hours

2024+ LC250 SDHQ Built Switch Pros SP9100 Kit

MCQUEEN

Pickup available, usually ready in 24 hours

190 South McQueen Road
Suite 109
Gilbert AZ 85233
United States

+14806332929

STATE OF CALIFORNIA CONSUMER WARNING
interior mount key features:
  • 3D CAD designed, engineered, & built 100% in-house for the best quality, fit, and finish.

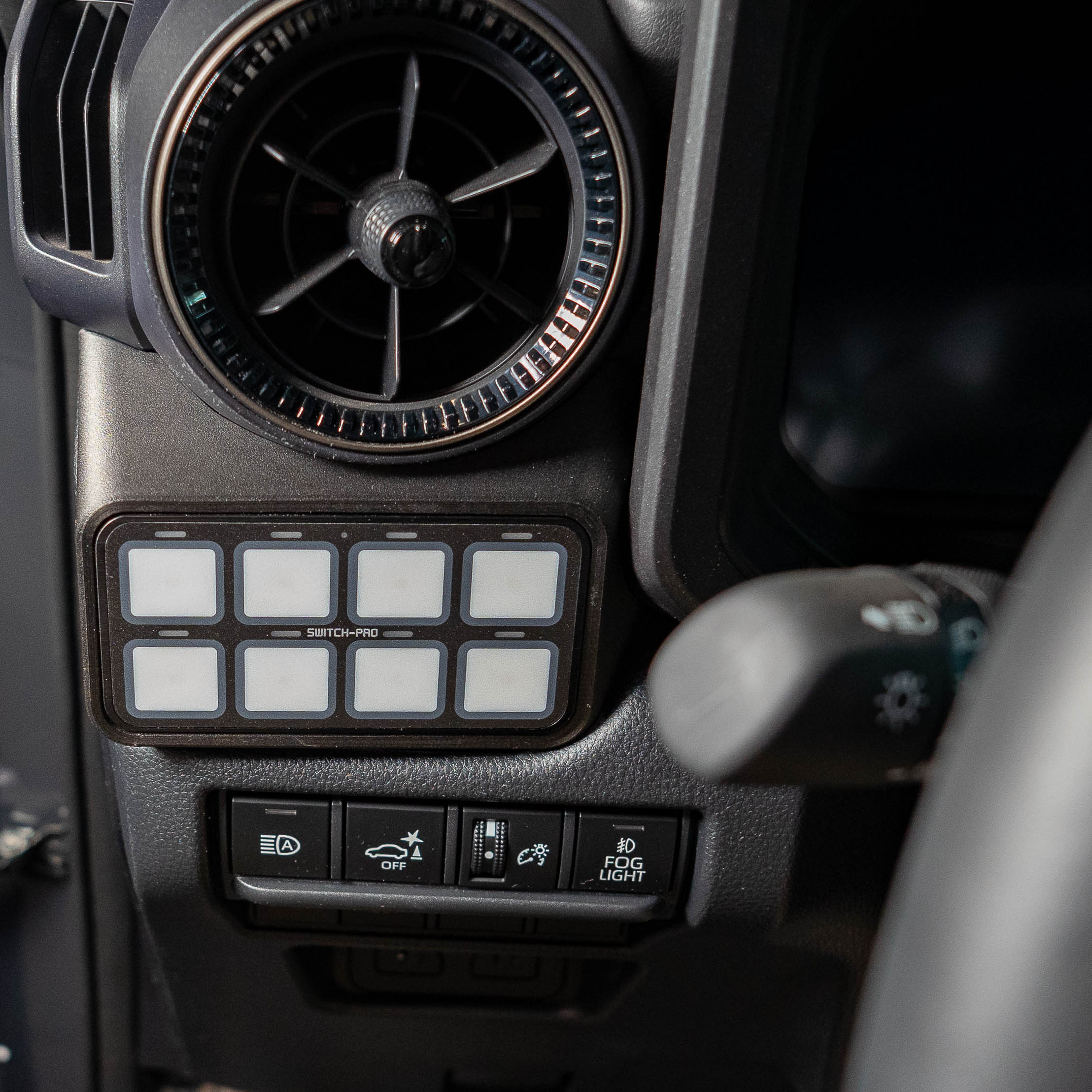

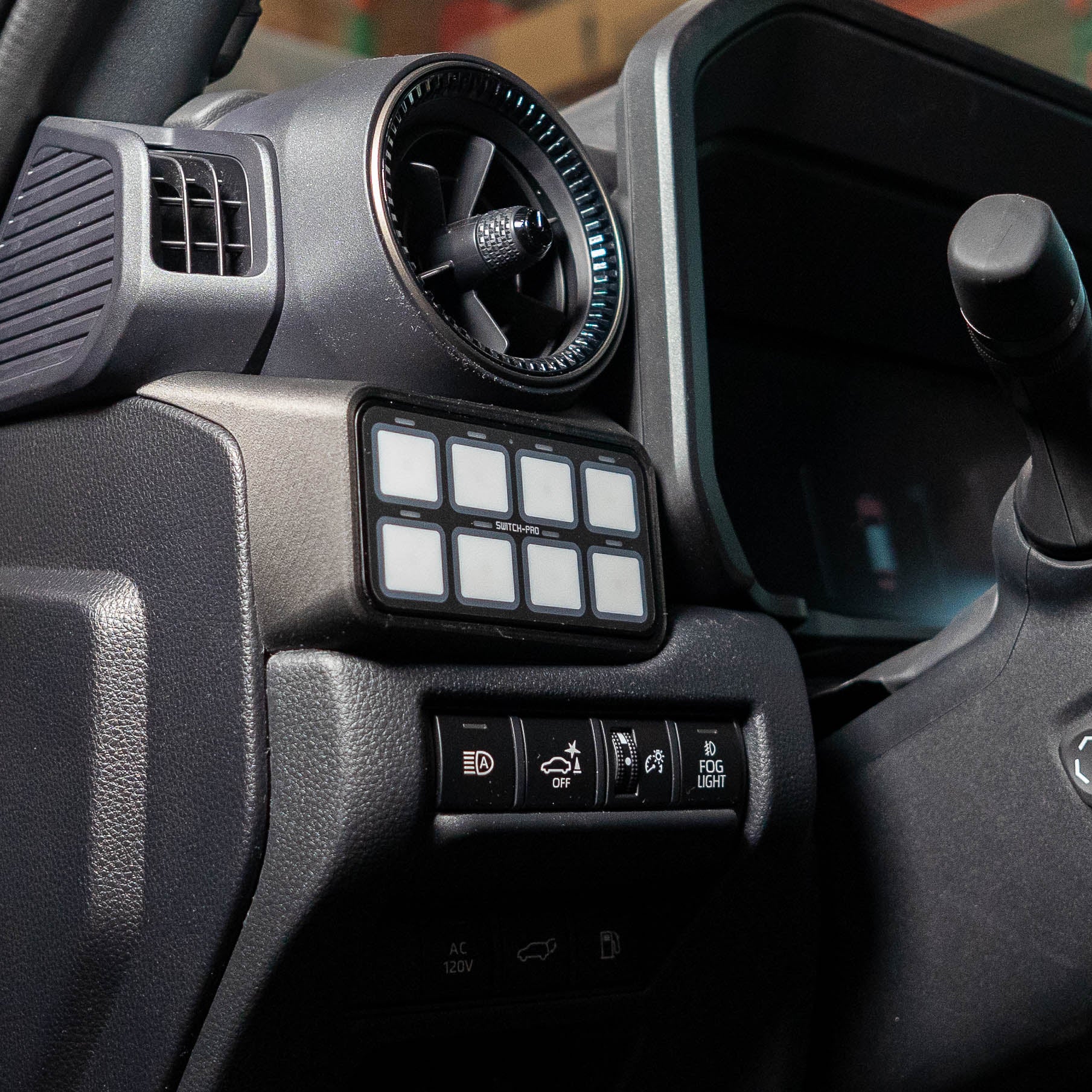

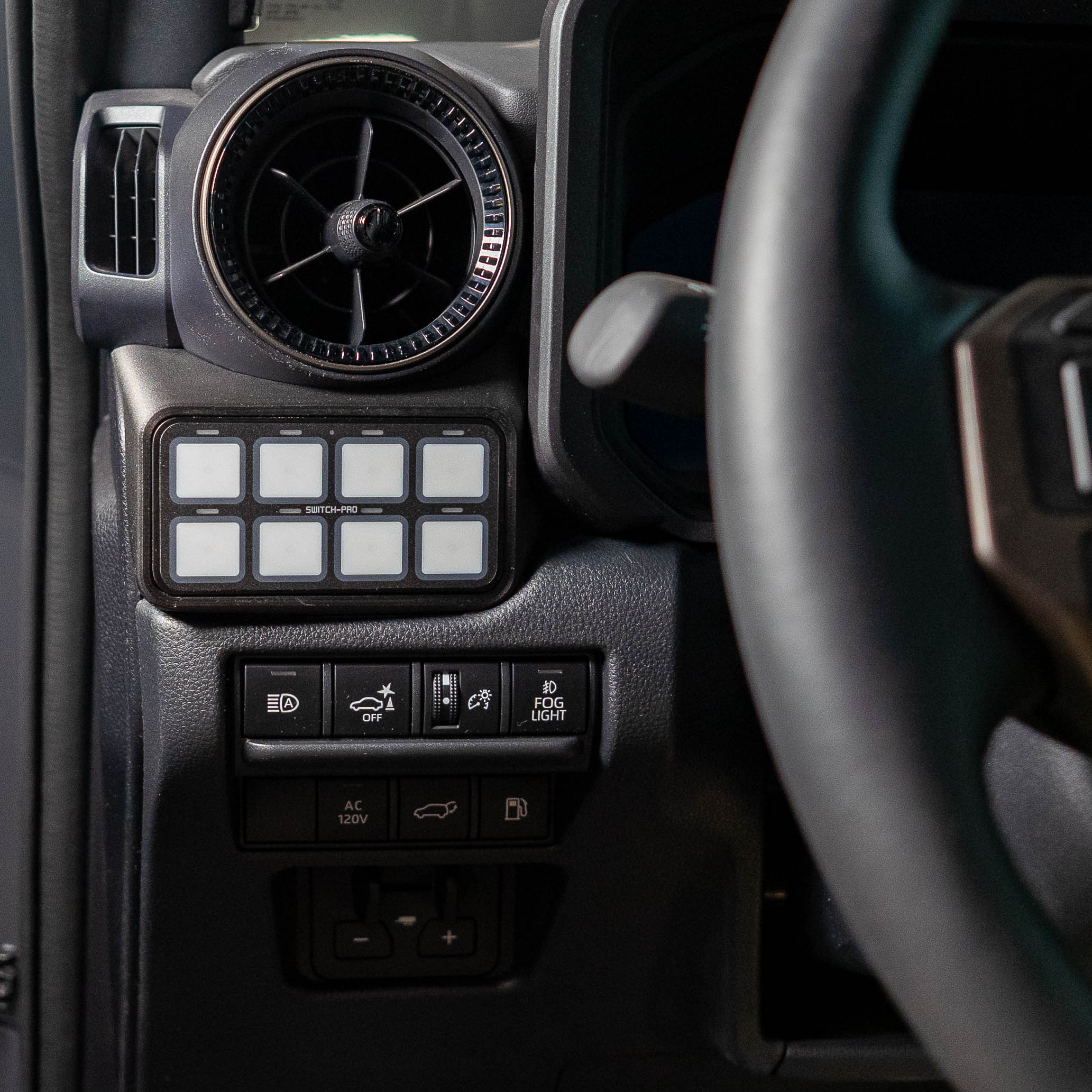

  • Replaces the factory dash panel to the left of the steering wheel with a Switch Pros 9100 keypad mount.

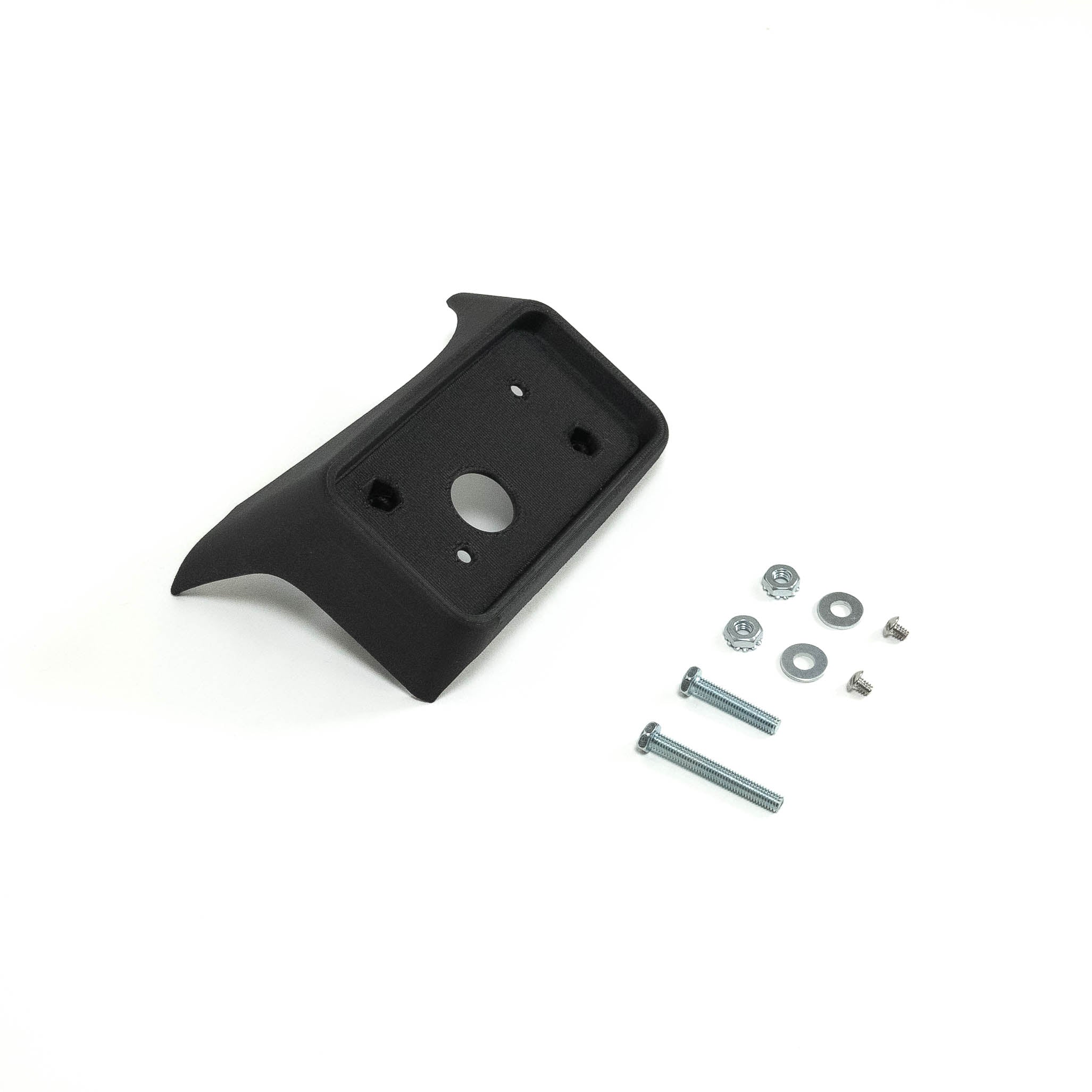

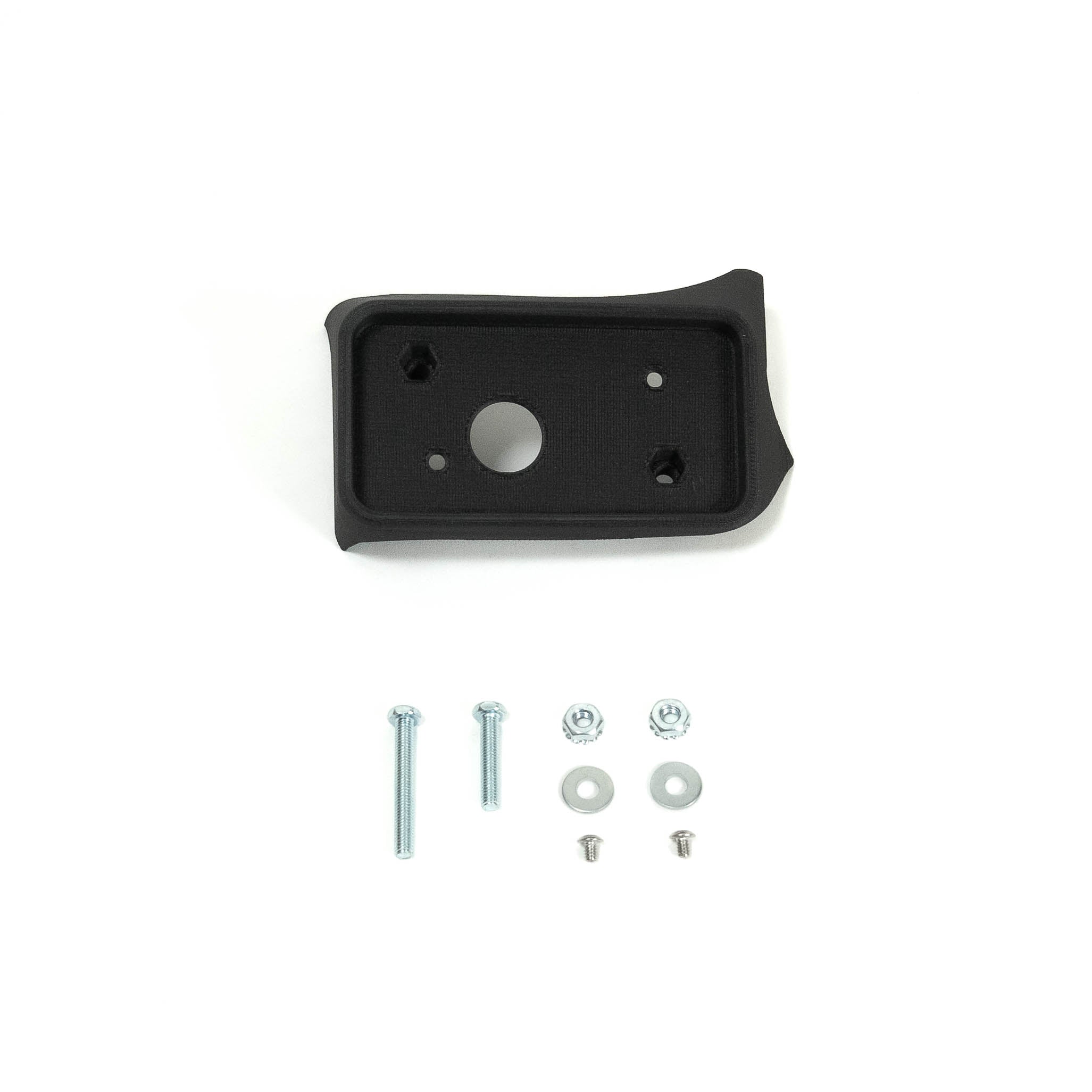

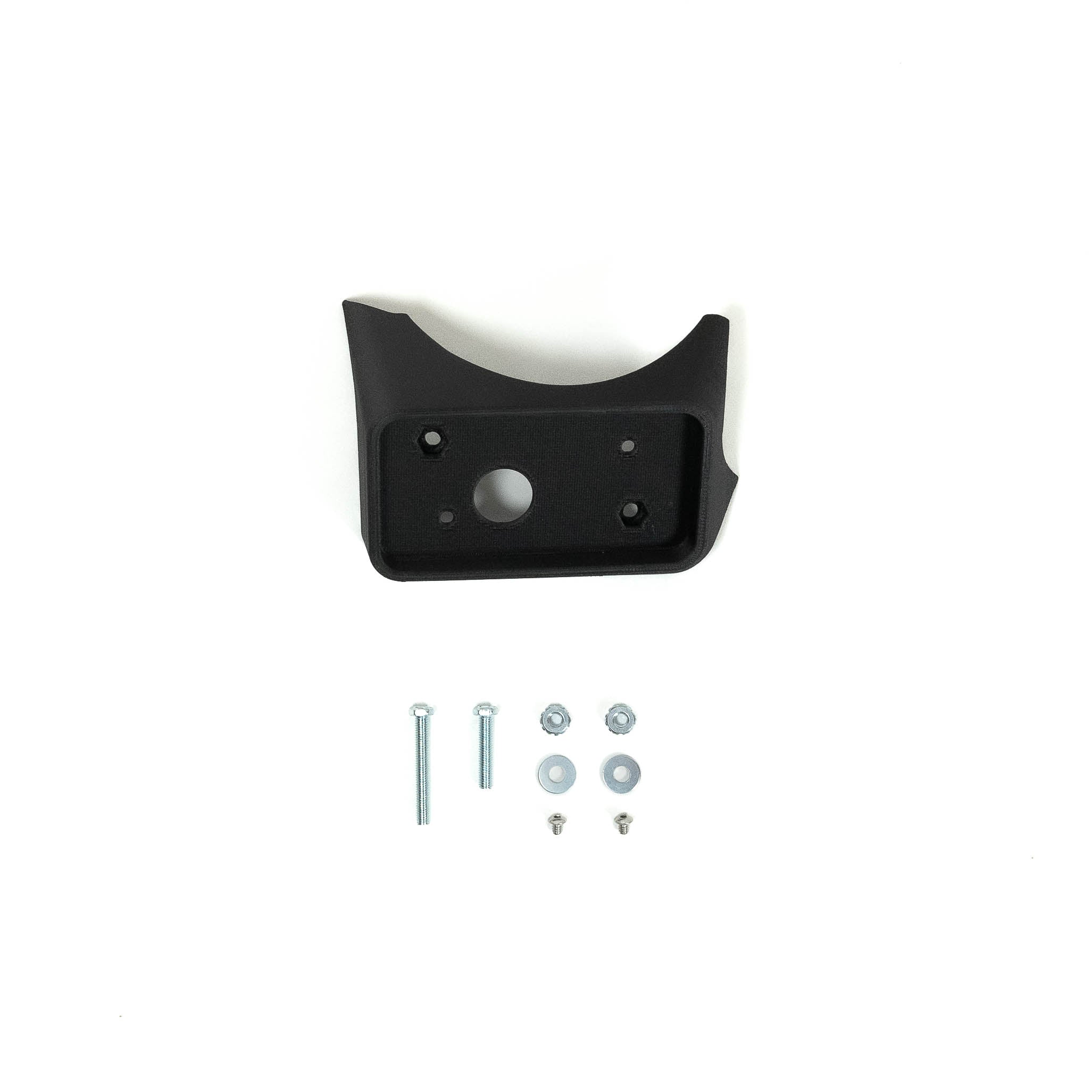

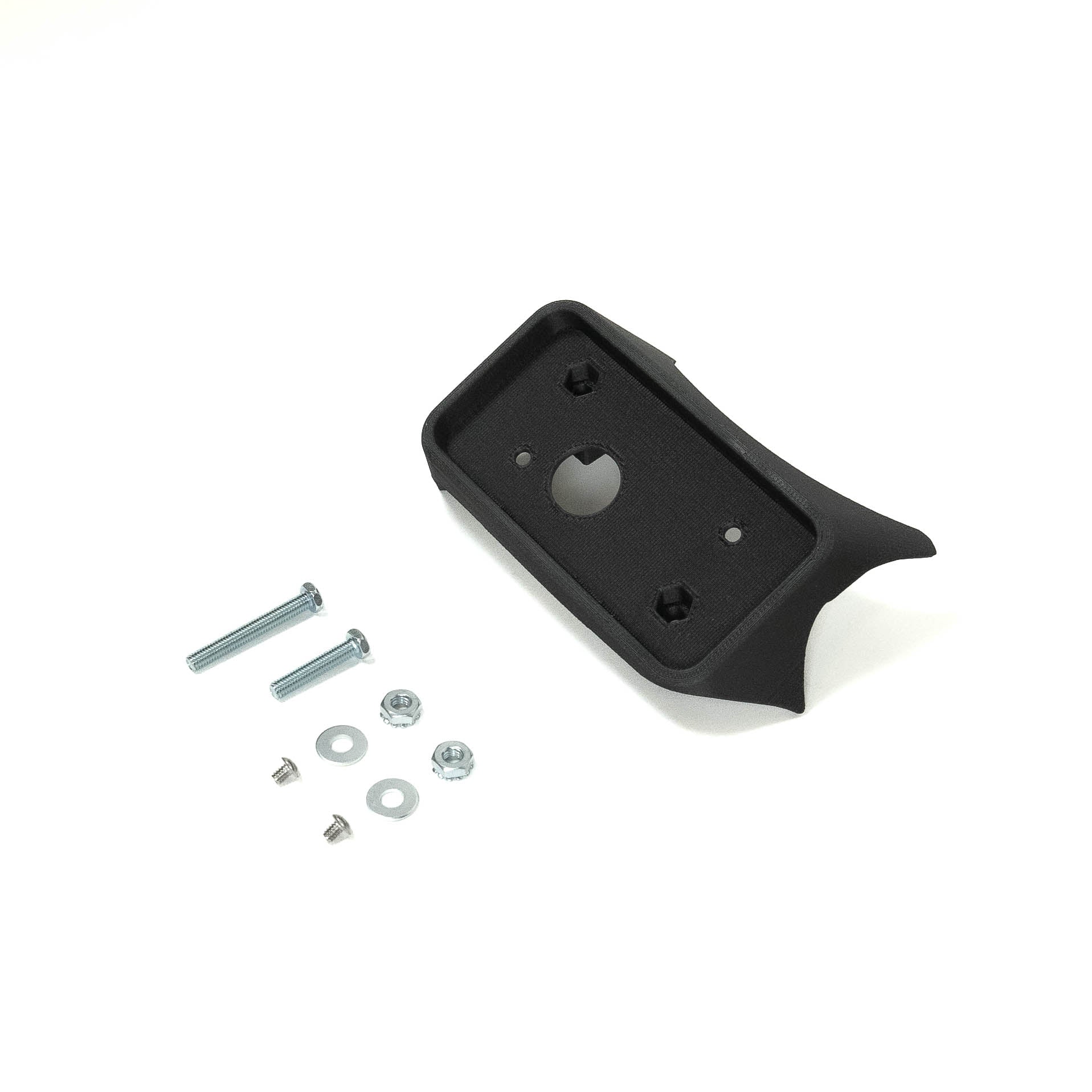

  • Carbon Fiber Reinforced Nylon 3D Printed Switch Pros Keypad Mount.
  • Tight tolerances provide a clean OEM+ fit and finish.
  • Drilling behind a dash panel is required for installation.
  • Does not fit the Switch Pros RCR12.
This kit does not include a power module mount. The end user will need to determine mounting the power module or the SDHQ Built LC250 Under Hood Power Solution Kit needs to be purchased with this kit.
installation instructions
Switch Pros SP9100 Features:
  • RGB Backlighting
  • Built-in Bluetooth module for use with free Switch-Pros App
  • Program and operate your panel from any device with access to the iOS or Google Play Store
  • Battery Voltage Readout on App screen
  • Orange LED switch indicators
  • LED Input Status Indicators for easy troubleshooting on power module
Specifications
  • 125amp capacity with 8 outputs
  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • Adjustable Output Overcurrent Values
  • Switch Panel enclosure measures 4” L x 2” W x .375” H
  • Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
  • Power Module Under Hood rating 125°C to -40°C
  • Switch Panel and Power Module Waterproof rating of IP67
Programming & Other Features
  • Preset Dimming function WITH MEMORY (100% to 10% brightness)
  • Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
  • On/Off or Momentary
  • Ignition or Battery Input
  • Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
  • Automatic Power-Up upon vehicle start up
  • Time Delay off
  • No bulky relay box
  • Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
  • Low Voltage Disconnect
  • Sleep Mode for minimal power consumption
  • Daisy Chain up to 3 Switch Panels to One Power Module

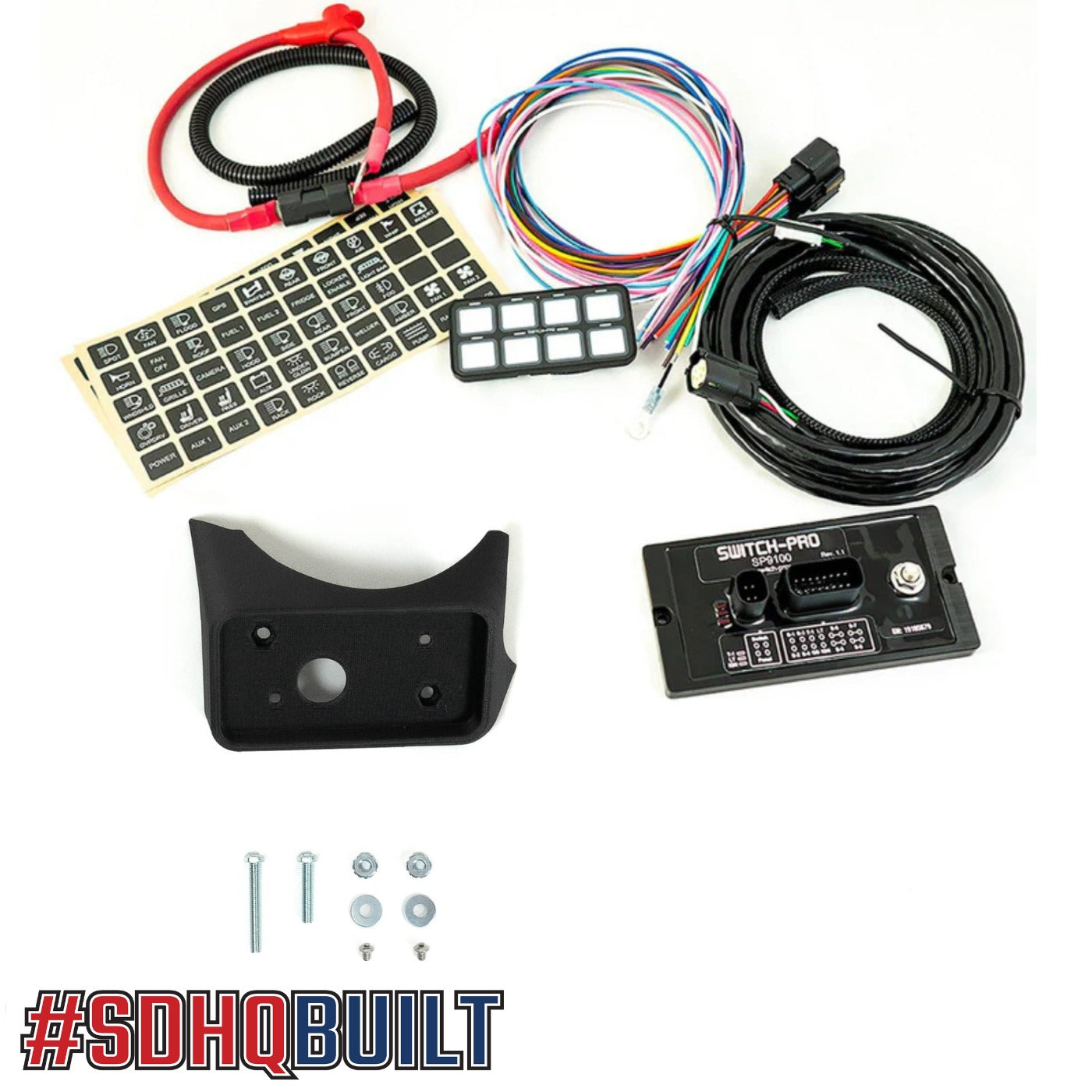

What’s Included?
  • Switch Panel and Power Module
  • RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)
  • 11’ of Communication Cable between Switch Panel and Power Module
  • Power Cable with 125A inline fuse
  • 125 User Selectable Legends included (Horizontal orientation)
  • Installation brackets and hardware
  • 16-pin color coded output harness
  • Detailed installation Guide
