OVERVIEW

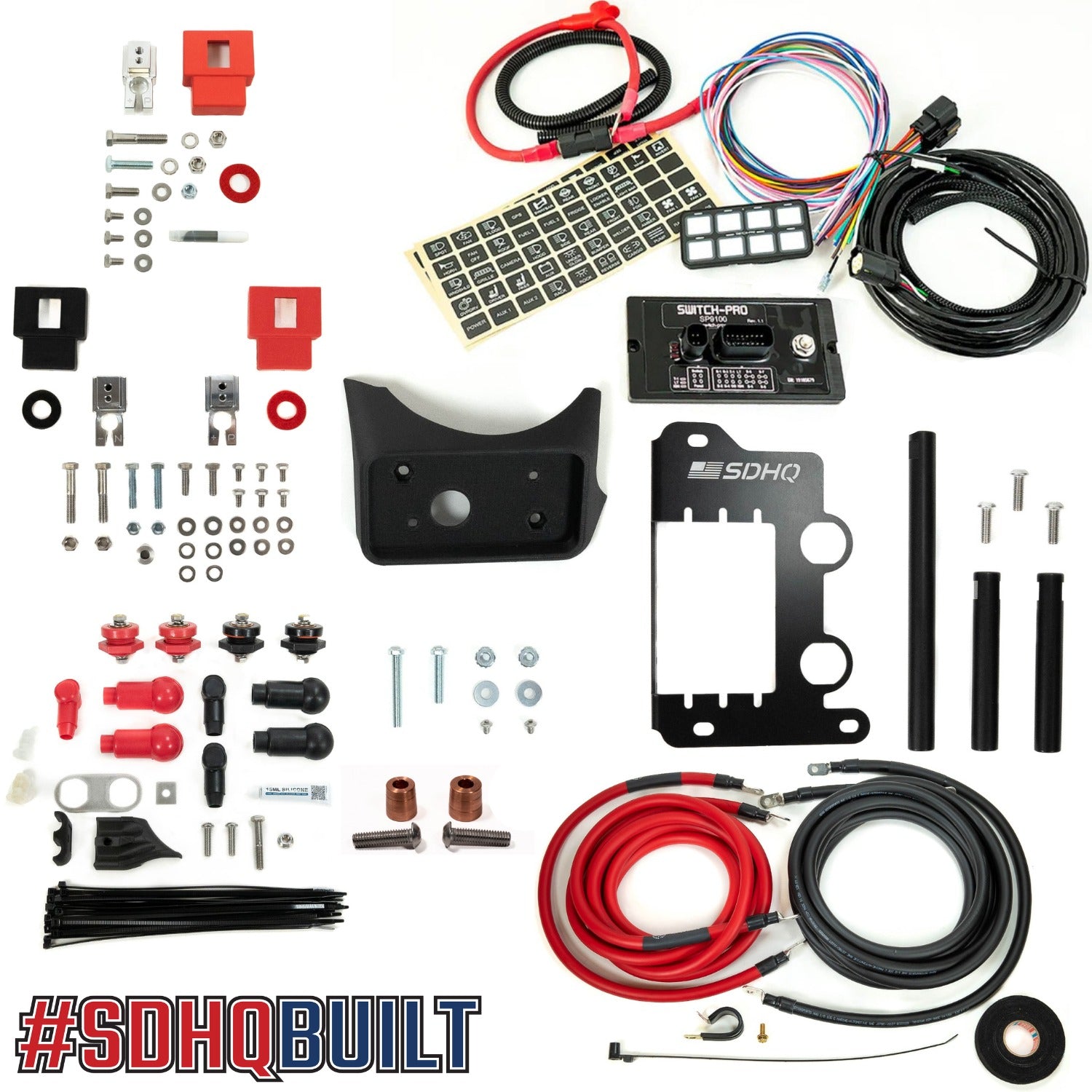

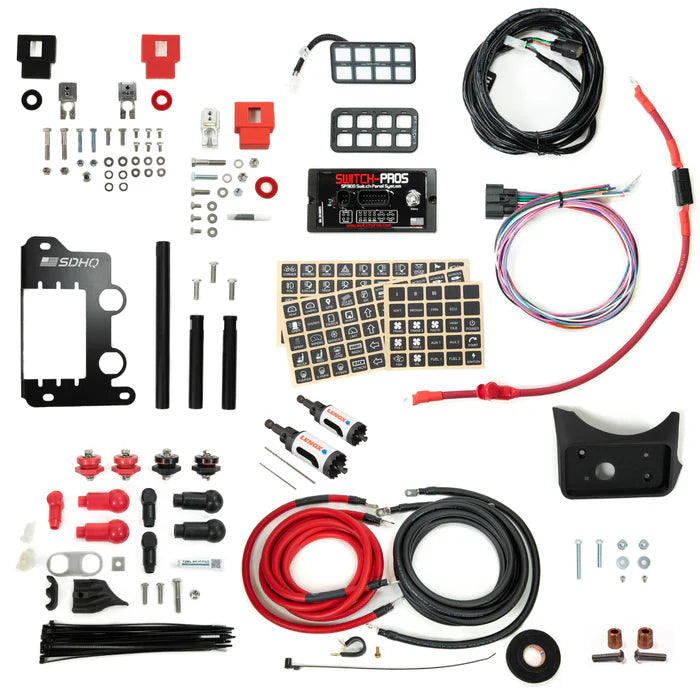

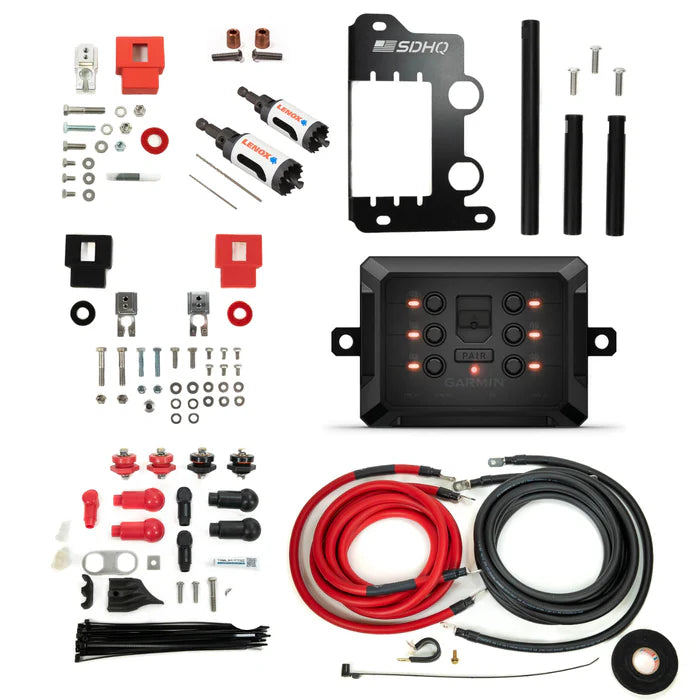

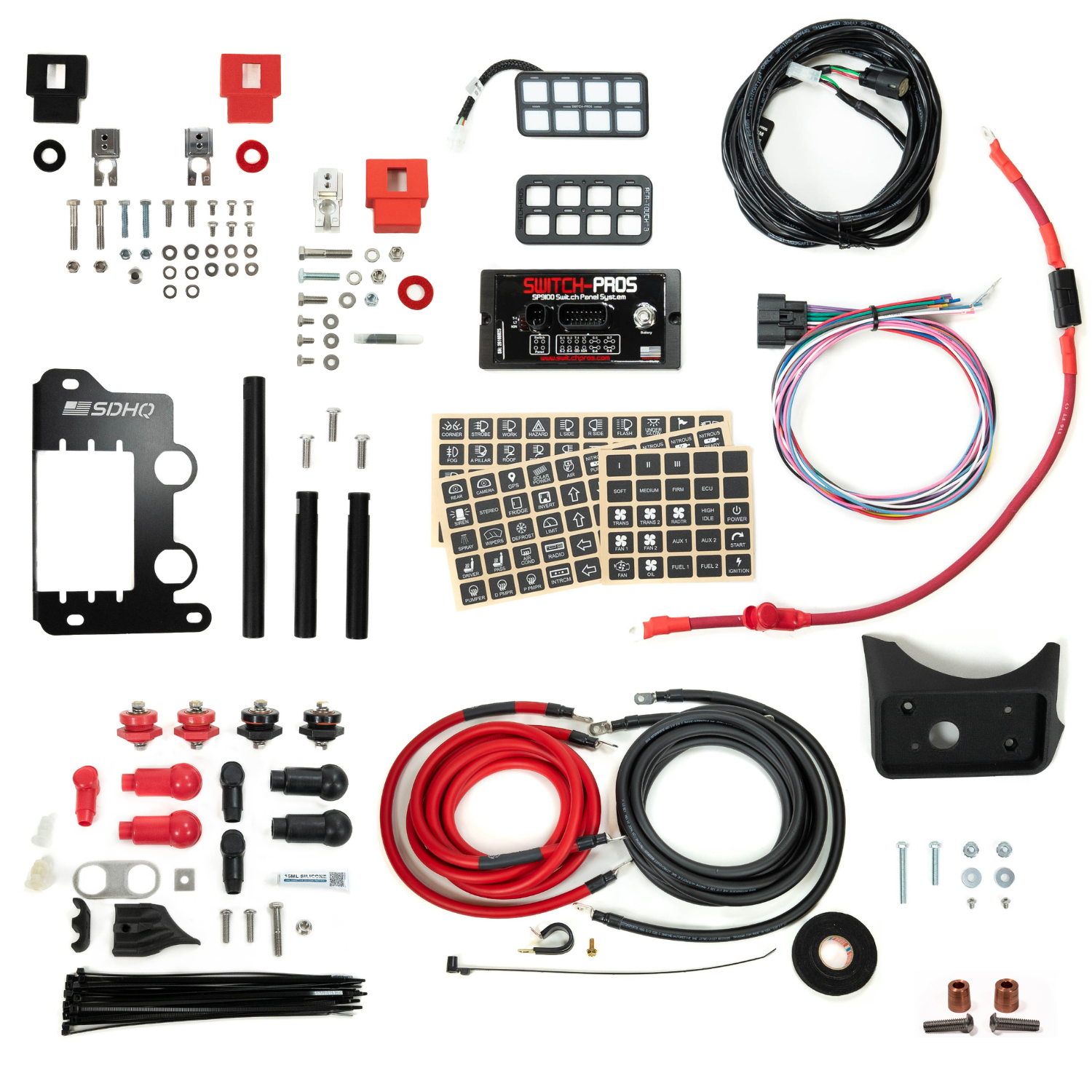

If you are planning on adding lights, a compressor, and other electrical accessories to your 2024+ LC250, this is the way to do it. Our SDHQ Built Under Hood Power Solution kit will create a remote battery terminal power source in the engine bay, capable of safely supplying power to anything from rock lights to a winch. The headache of adding accessories in the future is now easier than ever on the LC250, as wiring new parts will be to the SP9100 in the engine bay.

The SDHQ Built Switch Pros SP9100 keypad mount seamlessly installs into your dash to the left of the steering wheel, allowing you to control electrical accessories from one keypad. Not in the vehicle and need to turn something on? The SP9100 is also controllable via Bluetooth through the Switch Pros app.

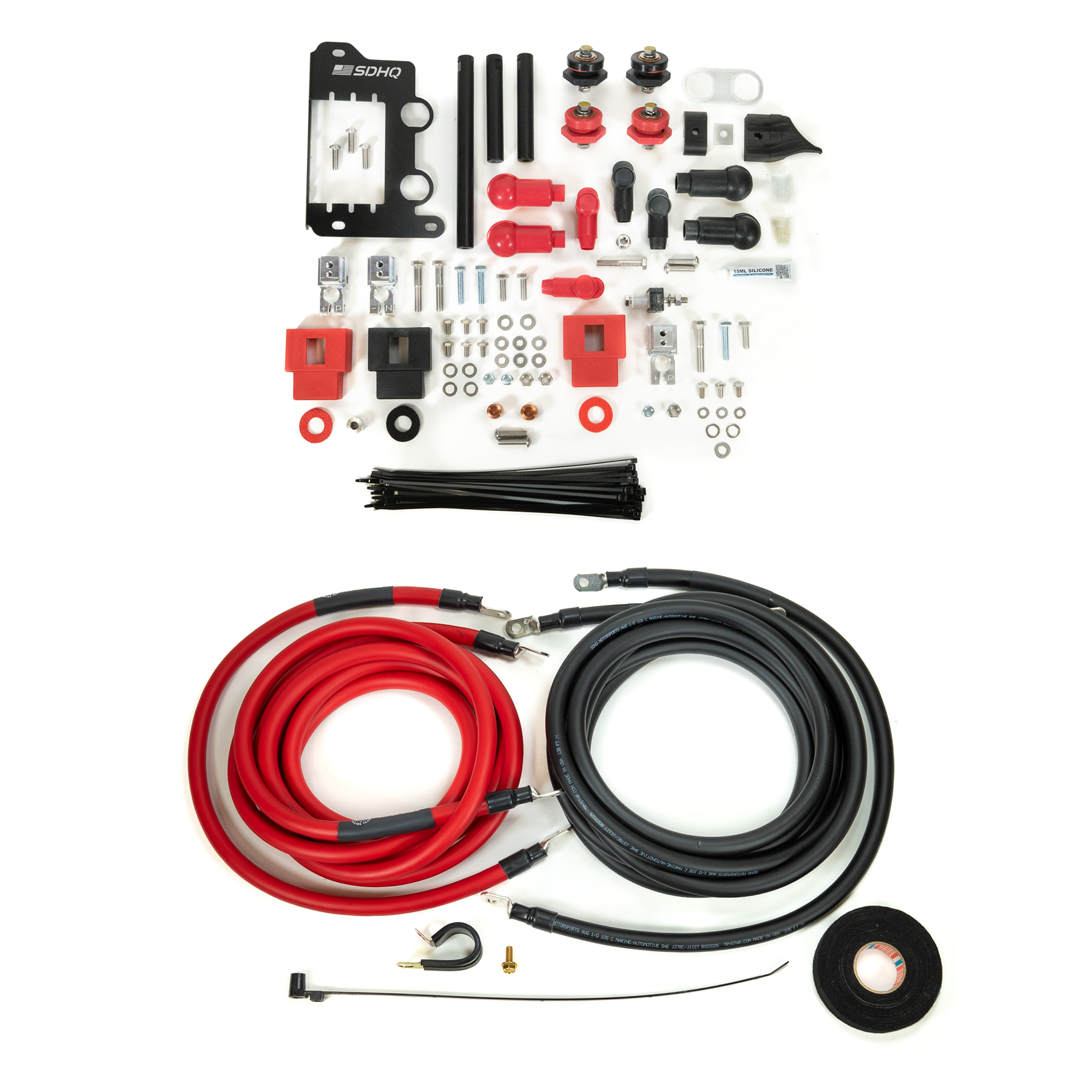

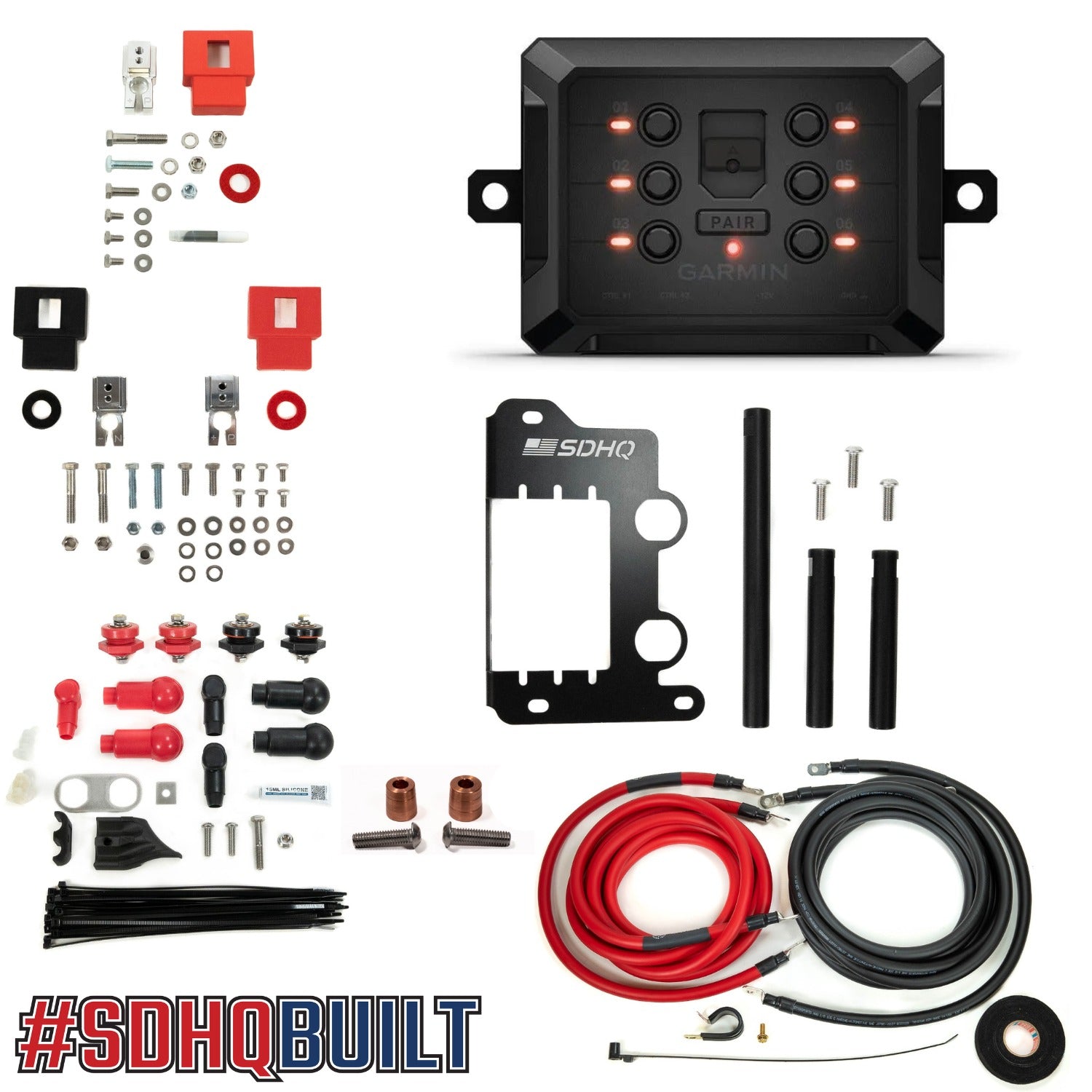

SDHQ Built 2024+ LC250 Under Hood Power Solution Kit Key Features:

Designed to fit 2024+ LC250
Complete 12-Volt Under Hood Solution
Remote Mount Billet Battery Terminals w/ Protective Boots
1/0 Dual Layer Jacketed Battery Cable (Rated for 350 amps continuous)
Copper Core Pass Through Bushings rated for 440 amps continuous (535 max for 12 min.)
500 amp Fused for shorting protection and use with winches (9% voltage drop @500 amps)
Power Module Mounting:
- - 9100 (multiple mounting options)
Optional Pass Through Tool Kit:
- - ⅛” and 3/16” stubby drill bits
  - 1-¼” Hole Saw
2-3 hour Install Time + any accessory wiring

Installation Instructions

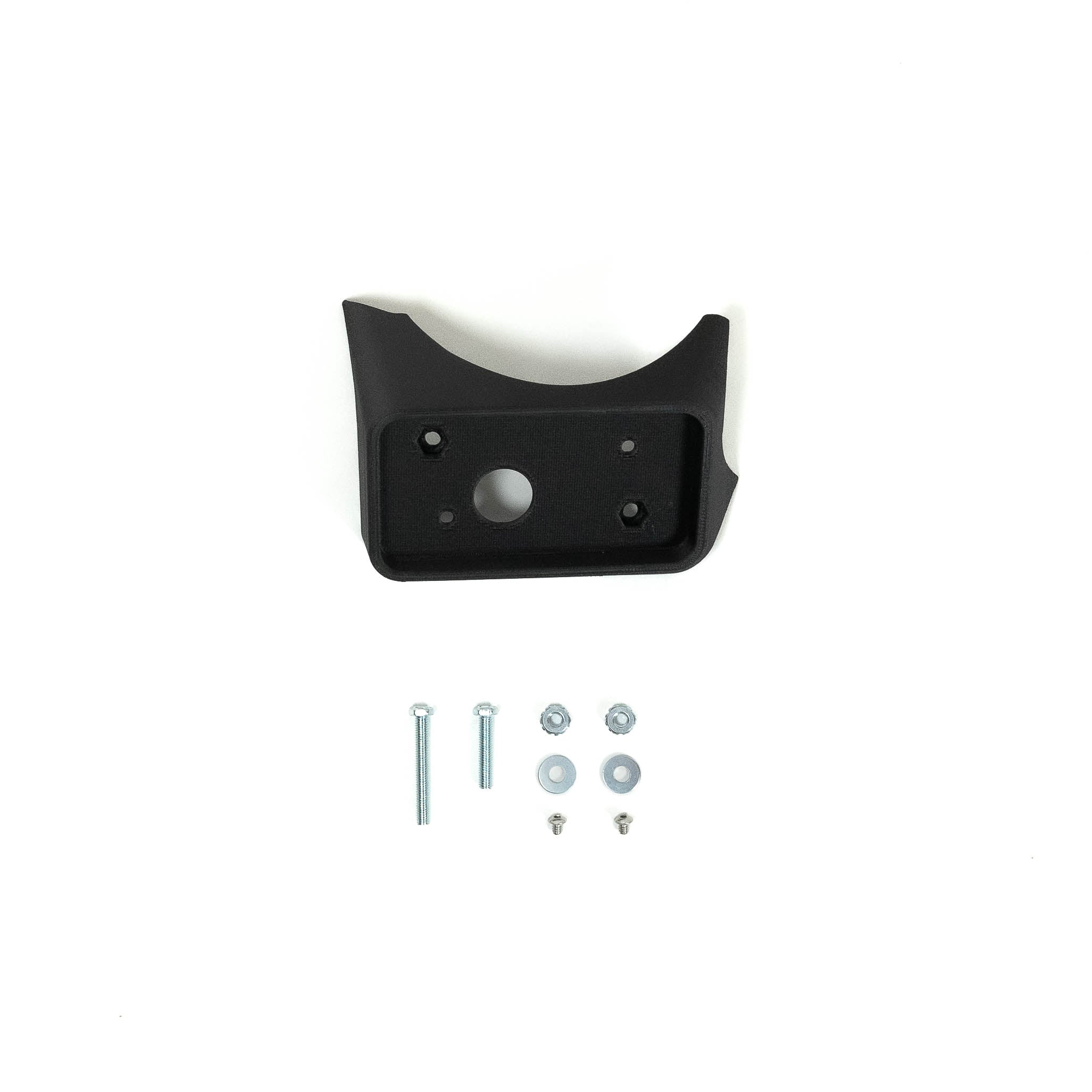

interior mount key features:

3D CAD designed, engineered, & built 100% in-house for the best quality, fit, and finish.

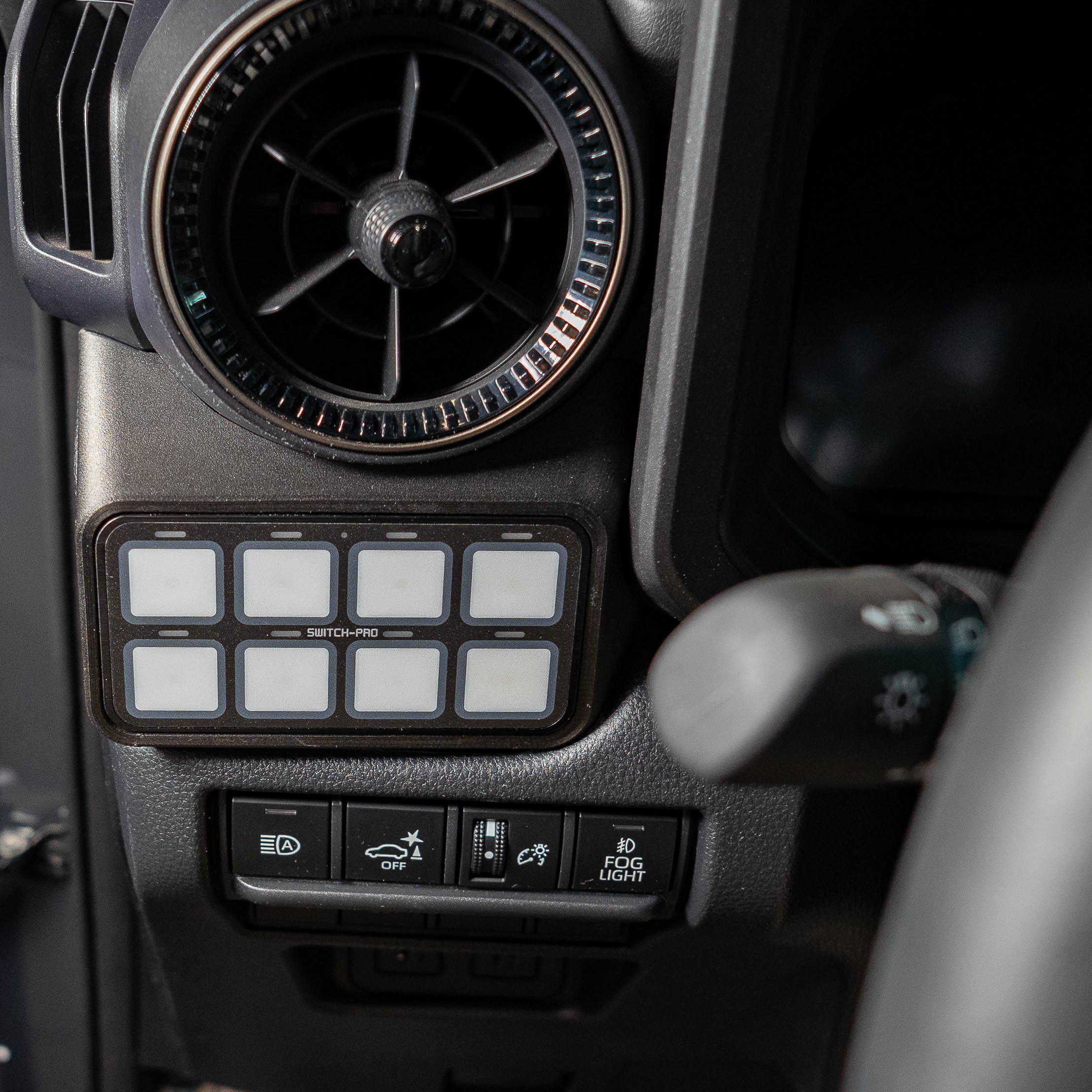

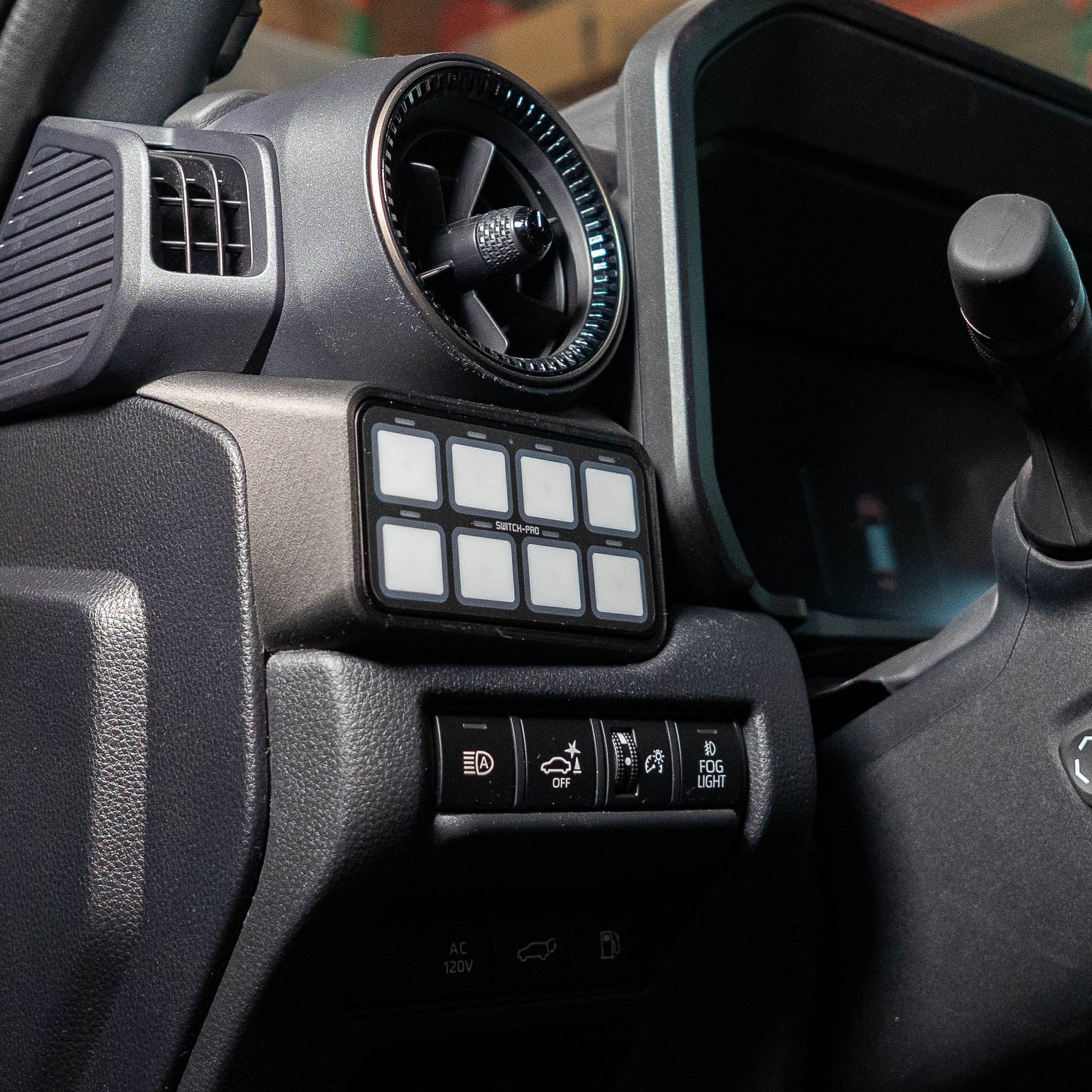

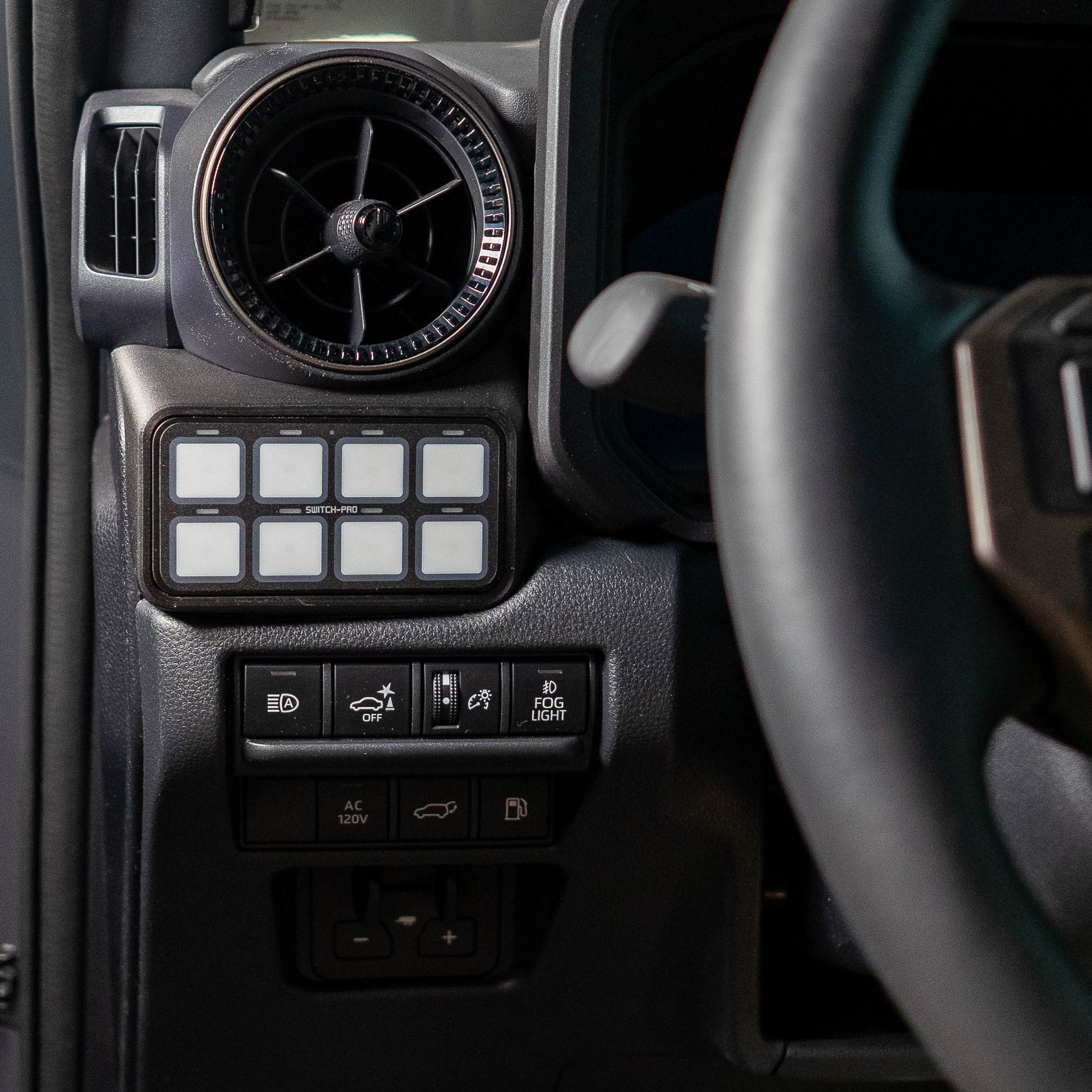

Replaces the factory dash panel to the left of the steering wheel with a Switch Pros 9100 keypad mount.

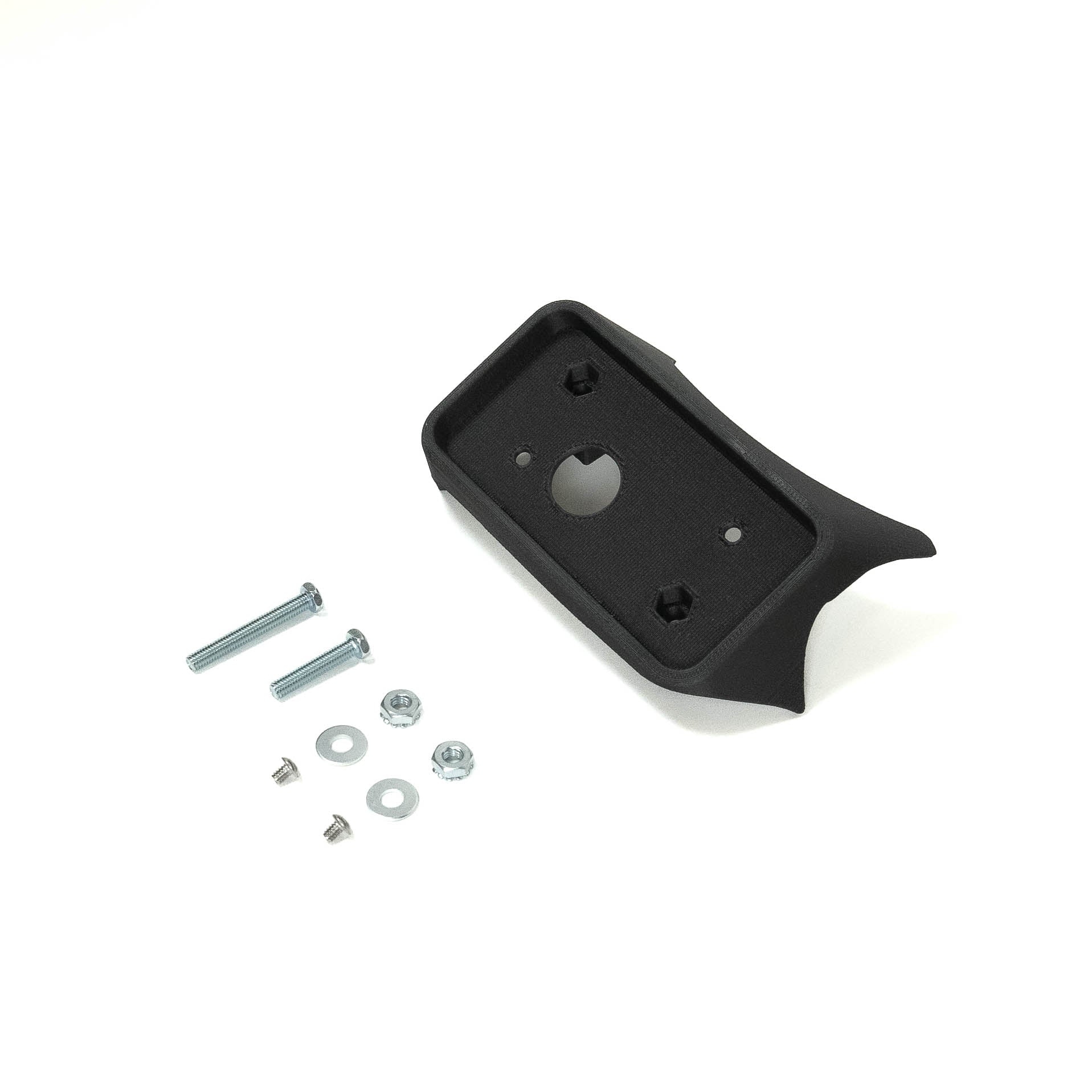

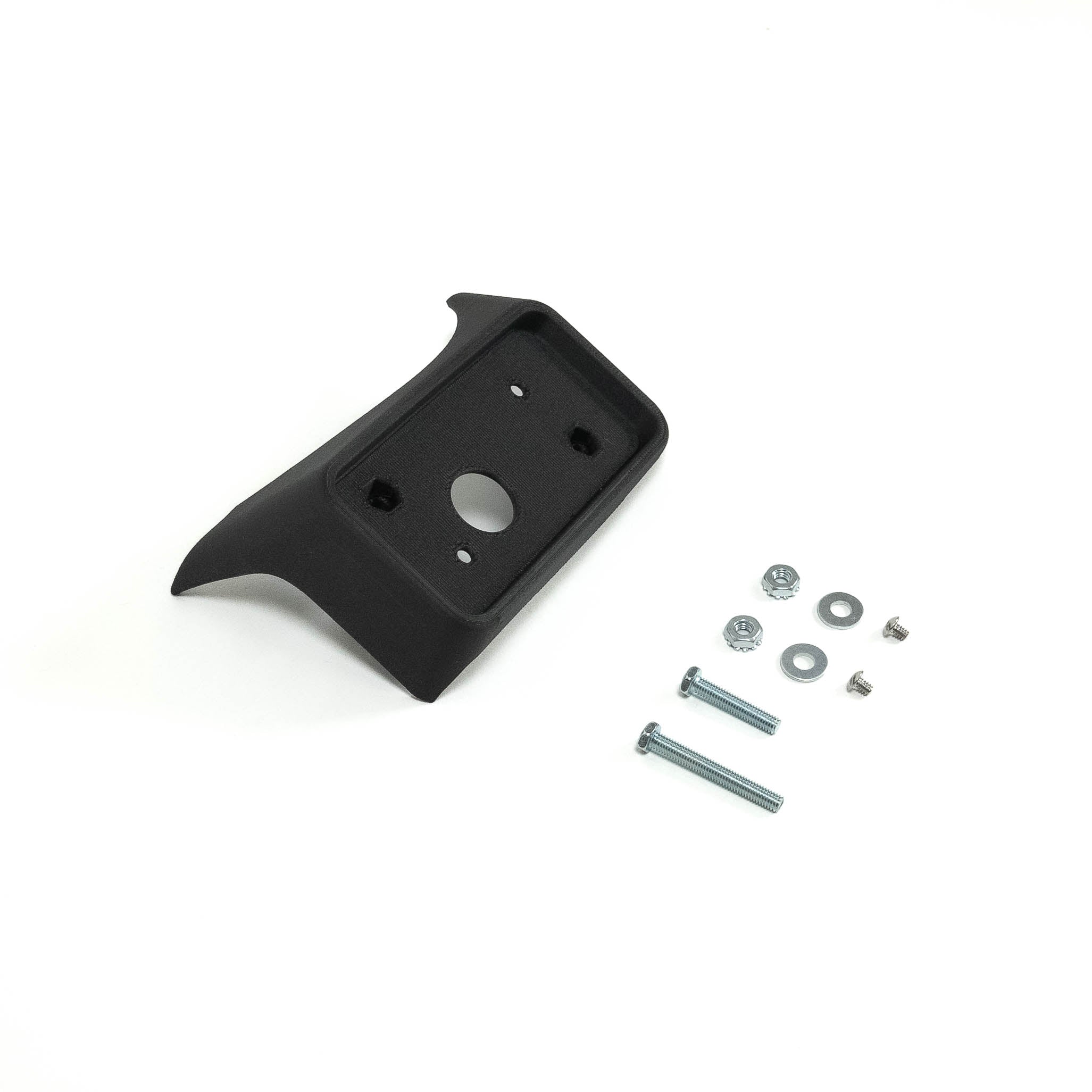

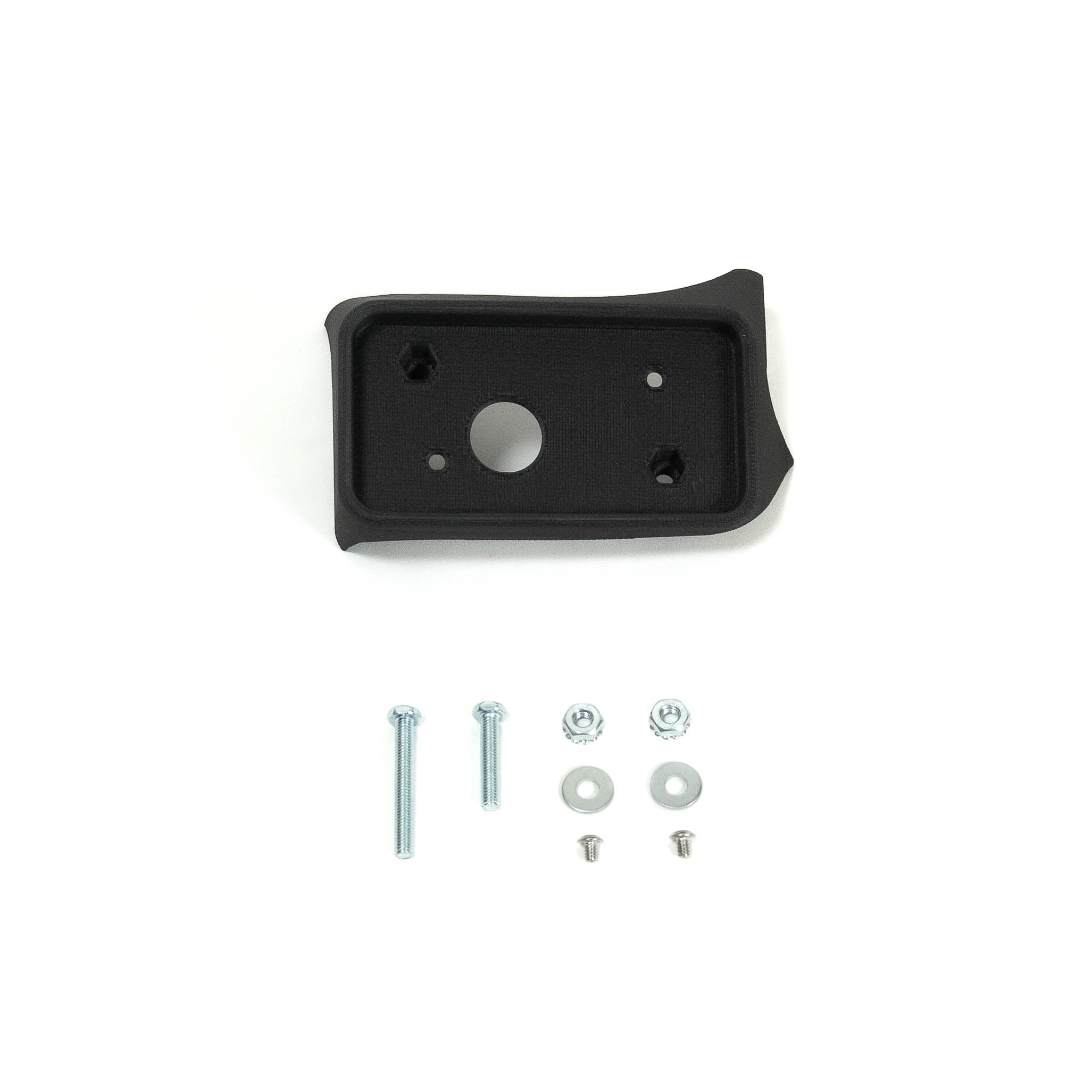

Carbon Fiber Reinforced Nylon 3D Printed Switch Pros Keypad Mount.
Tight tolerances provide a clean OEM+ fit and finish.
Drilling behind a dash panel is required for installation.
Does not fit the Switch Pros RCR12.

installation instructions

Switch Pros SP9100 Features:

RGB Backlighting
Built-in Bluetooth module for use with free Switch-Pros App
Program and operate your panel from any device with access to the iOS or Google Play Store
Battery Voltage Readout on App screen
Orange LED switch indicators
LED Input Status Indicators for easy troubleshooting on power module

Specifications

125amp capacity with 8 outputs
8 Outputs: 4 rated @ 35A, 4 rated @ 20A
Adjustable Output Overcurrent Values
Switch Panel enclosure measures 4” L x 2” W x .375” H
Power Module Measures 6”L x 3”W x .5”H (excluding connectors)
Power Module Under Hood rating 125°C to -40°C
Switch Panel and Power Module Waterproof rating of IP67

Programming & Other Features

Preset Dimming function WITH MEMORY (100% to 10% brightness)
Master Mode, with ability to turn up to 7 other switches On AND Off with one touch
On/Off or Momentary
Ignition or Battery Input
Flash or Strobe, with User-Selectable Strobe patterns and One Touch activation
Automatic Power-Up upon vehicle start up
Time Delay off
No bulky relay box
Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
Low Voltage Disconnect
Sleep Mode for minimal power consumption
Daisy Chain up to 3 Switch Panels to One Power Module

What’s Included?

Switch Panel and Power Module
RCR-Touch®8 cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain (United States Design Patent No. US D922,969 S)
11’ of Communication Cable between Switch Panel and Power Module
Power Cable with 125A inline fuse
125 User Selectable Legends included (Horizontal orientation)
Installation brackets and hardware
16-pin color coded output harness
Detailed installation Guide
